4×4 ATV UTV 12V/24V Electric Winch
4×4 ATV UTV 12V/24V Electric Winch
Electric winch is composed of electric motor, couplings, brakes, gearbox and drum, jointly mounted on the frame. For the case of lifting height ...
4×4 ATV UTV 12V/24V Electric Winch
Electric winch is composed of electric motor, couplings, brakes, gearbox and drum, jointly mounted on the frame. For the case of lifting height and large work of loading frequently,which has good speed performance and make empty hook decline rapidly. Besides,using a smaller speed for installation seated or sensitive materials. Hoist can be used alone, also can be used as a component of lifting machinery, road construction or mine hoist, which widely used with simple operation, roping large, easy displacement and mainly used for drag down or flat of materials in construction, water conservancy, forestry, mining, port etc. places.
DC 12 volt badlands winch , electric winch for truck , Electric winch features:
1. 12/24V volt series wound motor for power and fast line speed
2. Low-profile design will fit suv, offroad, jeep and so on
3. Durable, smooth, and reliable three-stage planetary geartrain
4. Automatic load-holding break for safety

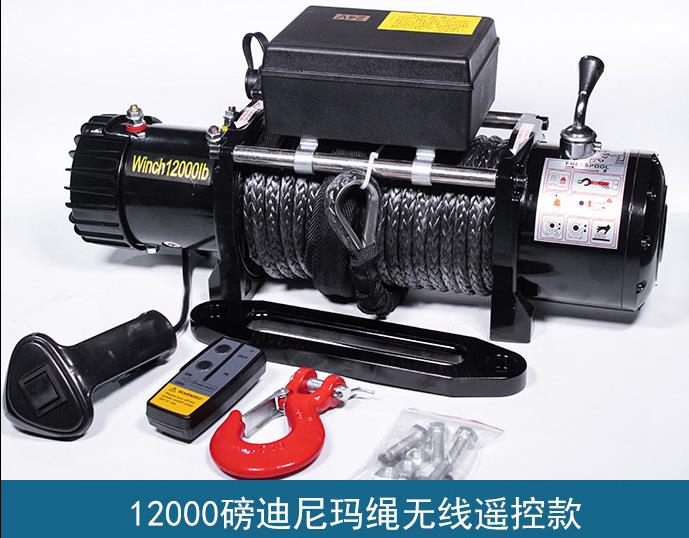

5. Aircraft grade wire rope, or synthetic rope is optional
6. Remote switch + wireless remote control
SPECIFICATIONS FOR ElECTRIC WINCH

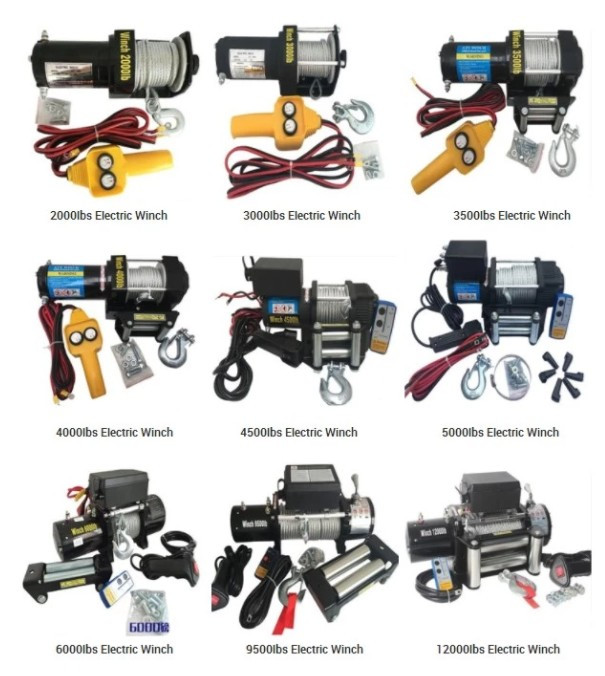

| Model | Rated line pull-single rope (lbs) | performance voltage | Motor (kw/hp) | Drum diameter & length(mm) | Total weight (kg) |
| DH-2000 |
2000 |
12V or 24V |
1.1/1.0 |
31*72 | 6 |
| DH-3000 |
3000 |
12V or 24V |
1.1/1.2 |
31*72 | 6.3 |
| DH-3500 | 3500 |
12V or 24V |
1.1/1.5 |
38*72 | 8.5 |
| DH-4000 | 4000 | 12V or 24V | 1.3/1.7 | 38*72 | 10 |
| DH-4500 | 4500 | 12V or 24V | 1.2/1.6 | 45*76.2 | 10 |
| DH-6000 | 6000 | 12V or 24V | 1.3/1.7 | 63.5*140 | 25 |
| DH-9500 | 9500 | 12V or 24V | 4.0/5.5 | 63.5*224 | 39 |

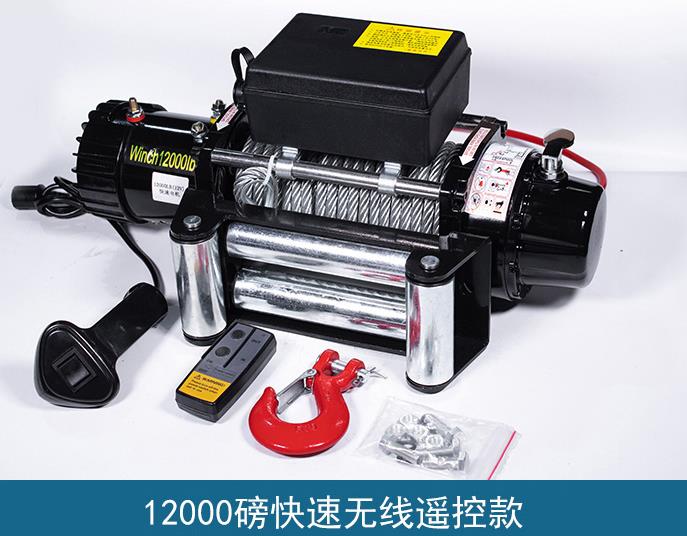

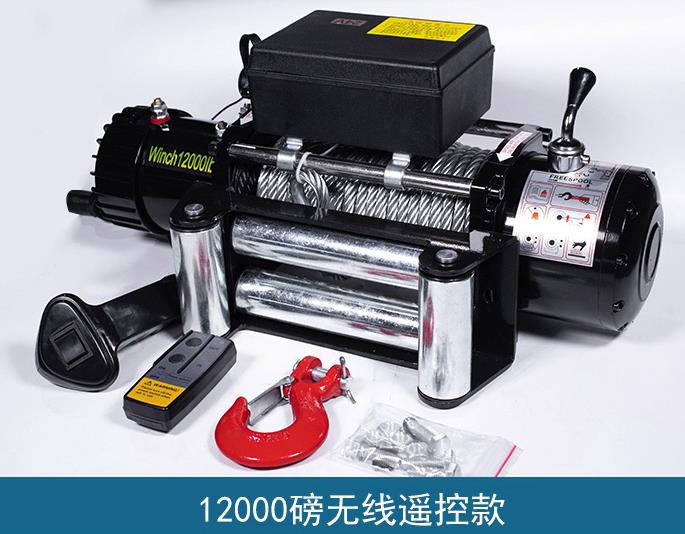

| DH-12000 | 12000 | 12V or 24V | 4.8/6.6 | 64*223.5 | 39 |

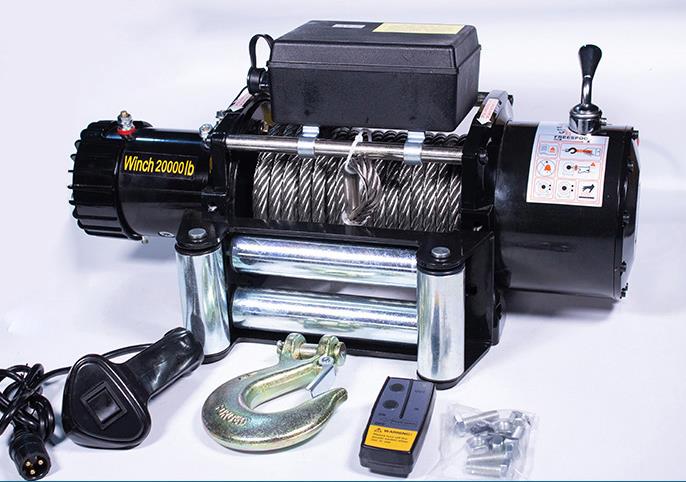

| DH-20000 | 20000 | 12V or 24V | 5.5/7.3 | 99*201.5 | 52 |
