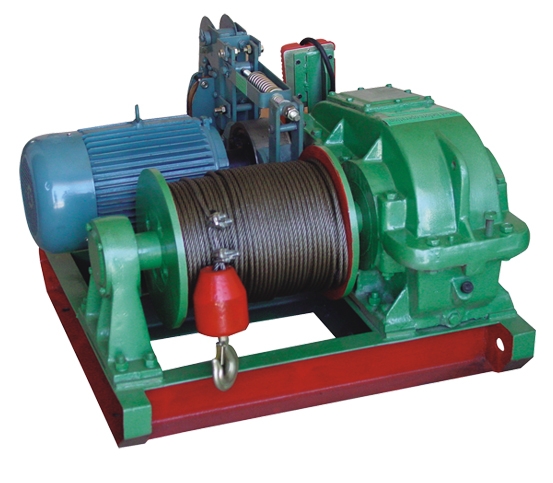

JK1-JK10 Type Fast Speed Building Electric Windlass
Rated Capacity:1000-10000 (kg)
JK fast speed winch is powered by three-box asynchronous motor, driven by elastic coupling, three-stage closed gear reduction box, and tooth-clamped coupling, and adopts electromagnetic braking. The product has high versatility, compact structure, small size, light weight, and easy transfer. It is widely used in material lifting or flat towing in construction, water conservancy projects, docks, etc., as well as related equipment of modern electronically controlled automatic operation lines.
The traction speed of the wire rope of the fast speed winch is 30-40m/min, and the single-rope traction force is about 5-80kn without the labor-saving pulley block. There are two kinds of single drum and double drum. In construction, it is often matched with gantry, well frame and pulley block to form vertical transportation equipment.
This series electric winch can be mainly used in lifting,disassemble,moving and intalling in building site, digging and workshops.
,with strong pull.Wire rope arranged in order,safe and reliable.
|
Model
|
JK1
|
JK3
|
JK5
|
JK8
|
JK10
|
|
|
Rated capacity (kg)
|
1000
|
3000
|
5000
|
8000
|
10000
|
|
|
Rated speed (m/min)
|
34
|
30
|
29
|
20
|
19
|
|
|
Cable Diameter (фmm)
|
11
|
17
|
22
|
26
|
30
|
|
|
Wire Rope Capacity(mm)
|
110
|
200
|
300
|
300
|
250
|
|
|
Reduction box
|
Type
|
JZQ350
|
JZQ500
|
JZQ650
|
JZQ650
|
JZQ750
|
|
Transmission ratio
|
31.5
|
40.17
|
23.34
|
|||
|
Drum (mm)
|
Diameter(ф)
|
190
|
310
|
400
|
500
|
550
|
|
Length
|
363
|
580
|
840
|
910
|
1020
|
|
|
Motor
|
Type
|
Y132M-4
|
YZR225M-8
|
YZR250M1-8
|
YZR250M1-6
|
YZR250M2-6
|
|
Power(kW)
|
7.5
|
22
|
30
|
37
|
45
|
|
|
Rotating speed(r/min)
|
1440
|
715
|
720
|
960
|
960
|
|
|
Arrester
|
TJ2-200
|
TJ2-300
|
TJ2-300
|
YWZ-300
|
YWZ-400
|
|
|
Size(cm)
|
102 ×90 ×60
|
156 ×137 × 90
|
220 ×180 ×94
|
240 ×180 ×110
|
250 ×190 ×120
|
|
|
N.W.(kg)
|
460
|
1000
|
2700
|
4000
|
5000
|
|
