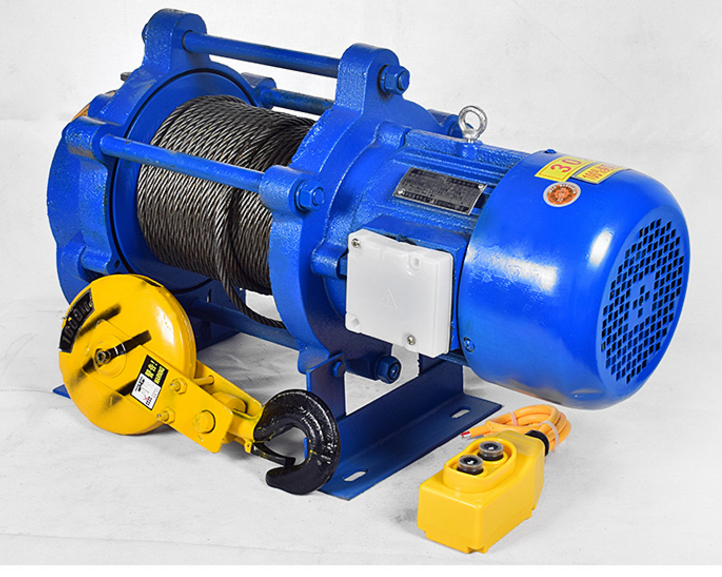

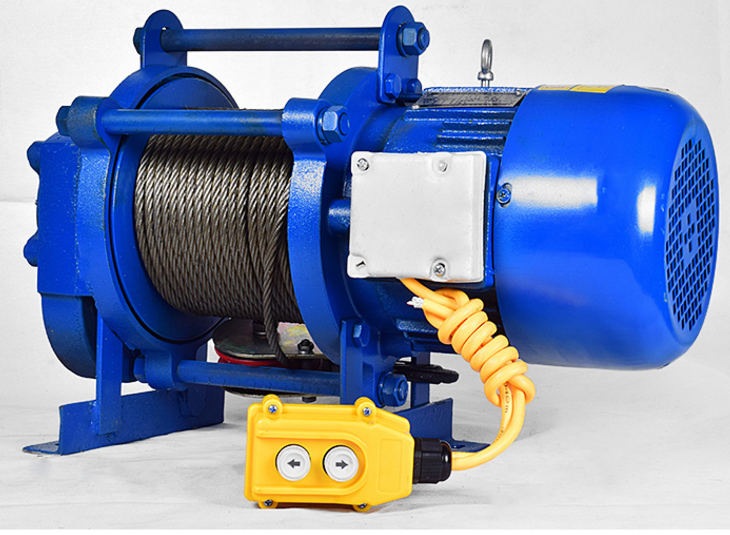

JDM Type Cast Iron Shell Electric Winch
JDM Type Cast Iron Shell Electric Winch
Capacity: 300kg-2000kg
220v /380 v
Product introduction:
1.) Wire Rope Fixing: No escape of wire rope from the drum ...
Capacity: 300kg-2000kg
220v /380 v
Product introduction:
1.) Wire Rope Fixing: No escape of wire rope from the drum by means of P.T.screw device.
2.) Drum Transmission: The shaft direct friving drum provides rope replacement and alteration
of rotation with easy.
3.) Electromagnetic: Designed for both static and dynamic loading. Brake will automatically apply
in the event of power cut.Large friction surface area. No adjustments or serving requirement.
4.) Gear Box: Provides strength.durability and non-worry of breakage of structure.
5.) Special Motor: Insulated B,with the features of big start torque,small inertia,lower temperature
rise,it can work frequenntly for a long time.
6.) Driving Gear: The heat treated gear with bearings features durable performance and anti-wear.
7.) Machine Fixture: It is made of super armor plate.used for suspender,lifter and girder.
| Model | Rated Load-single rope (kg) | Rated Load-double rope (kg) | Speed (m/min) | Length of rope (m) | Motor capacity (kw) | Rope diameter (mm) | Total weight (kg) |
| KCD-300 |
300 |
600 |
12 |
28 |
0.4 |
5.0 | 35 |
| KCD-400 |
400 |
800 |
12 |
28 |
1.0 |
6.0 | 42 |
| KCD-500 | 500 |
1000 |
12 |
28 |
0.8 |
6.0 | 52 |
| KCD-750 | 750 | 1500 | 12 | 28 | 1.5 | 7.0 | 52 |
| KCD-1000 | 1000 | 2000 | 14 | 28 | 3.0 | 7.0 | 52 |
