1 Ton 2ton 3ton 5 Ton 10 Ton Chain Block Manual Hoist
Hand Manual Chain Pulley Block Hoist Manufacturer

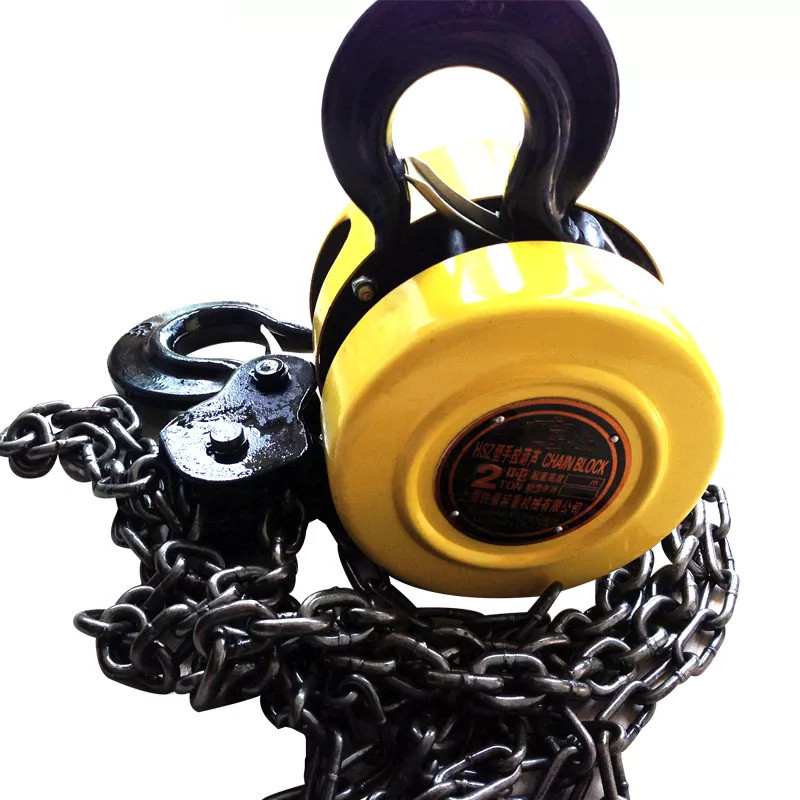

Hand Manual Chain Pulley Block Hoist Manufacturer is a portable, hand-operated device for lifting and lowering a freely suspended loadusing a wire rope or chain wrapped around a drum or liftwheel. It is attached to a suitable support usingthe mounting hook on the housing and attaches to the load using the hook on its lifting chain.
Feature of Hand Manual Chain Pulley Block Hoist Manufacturer
(1)CE, GS European Quality Certificate
(2)Heat treated three gears in high quality steel
(3)High strength load sheave in ductile cast iron
(4)Integral sealed bearing increases mechanical efficiency
(5)Double pawl mechanism enhances brake safety
Capacity |
tons |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
15 |
20 |
Standard lift |
m |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
Running test load |
KN |
7.5 |
15 |
22.5 |
30 |
45 |
75 |
125 |
200 |
250 |
Effort required to it rated load |
N |
225 |
309 |
343 |
314 |
343 |
383 |
392 |
392 |
392 |
Strands of load chain |
|
1 |
1 |
1 |
2 |
2 |
2 |
4 |
6 |
8 |
Diameter of load chain |
mm |
6 |
6 |
8 |
6 |
8 |
10 |
10 |
10 |
10 |
Dimensons |
A |
120 |
142 |
178 |
142 |
178 |
210 |
358 |
400 |
580 |
B |
108 |
122 |
139 |
122 |
139 |
162 |
162 |
196 |
189 |
C |
315 |
335 |
435 |
470 |
555 |
720 |
820 |
920 |
1040 |
(mm) |
D |
35 |
40 |
45 |
50 |
55 |
65 |
85 |
110 |
110 |
K |
23 |
26 |
29 |
34 |
37 |
41 |
50 |
80 |
80 |
Net weight |
kg |
8 |
10 |
16 |
14 |
24 |
36 |
68 |
117 |
155 |
Packing measurement |
cm |
28X21X17 |
30X24X18 |
34X29X20 |
33X25X19 |
38X30X20 |
45X35X24 |
62X50X28 |
70X46X75 |
70X46X75 |
Extra weight per matre of Extra lift |
kg |
1.7 |
1.7 |
2.3 |
2.5 |
3.7 |
5.3 |
9.7 |
14.1 |
19.4 |
