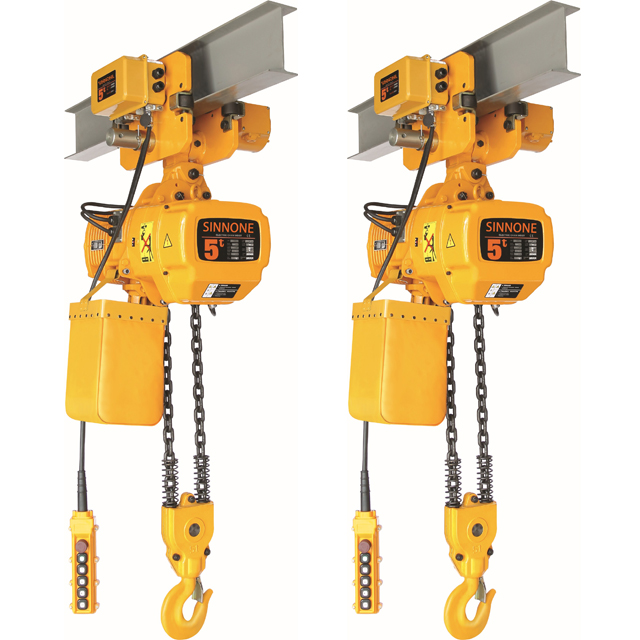

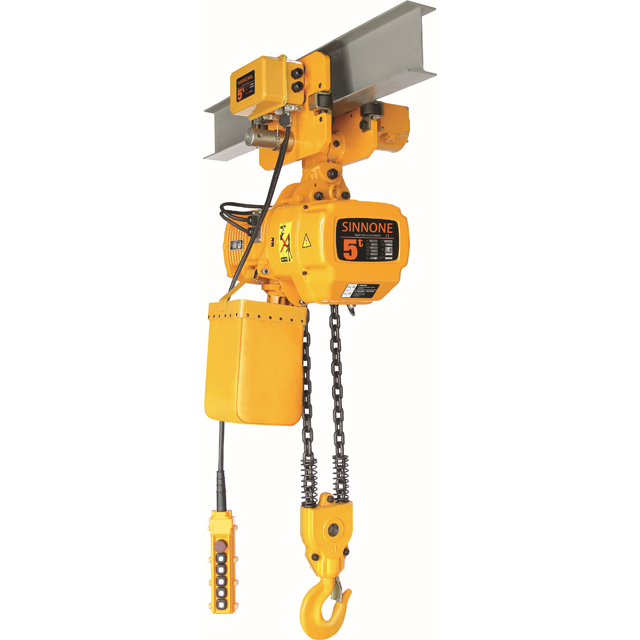

300KG-5Ton Electric Chain Hoist with Trolley
300KG-5Ton Electric Chain Hoist with Trolley
Lifting Capacity: 300KG-5Ton
Speed: Single speed/Double speed
Application scenarios: Mining, metallurgy, construction, chemical, cem...
300KG-5Ton Electric Chain Hoist with Trolley
Lifting Capacity: 300KG-5Ton
Speed: Single speed/Double speed
Application scenarios: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.
Product Features:
Transformer:
24V/36V/48V/110V transformer device.This device is used to prohibit unexpected accidents caused by electric leckage andguarantee the safe use while raining.
Shell:
It is made of light aliminum alloy shell,light but hard. The cooling fin is especially designed to ensure quick heatdessipation with the rate up to 40% and continuous service.
Side Magnetic Braking Device:
The magnetic force generator is featured forgenerating magnetic force. It allows instant brakeas soon as the electric power is cut off,the braking safety while loading is guaranteed.
Limit Switch:
The limit switch device is installed to make the motor to stop automatically so as to prohibit the chain from exceeding for safety.
Chain:
The chain shall adopt the heat-treatable aluminum alloy chain. It can be safely used in poor environments such as rain,sea water and chemicals.
Hook & Hook Safety Latch:
It is hot forging with perfect strength that is hard to break. The operation safety of the lowerhook is ensured by its 360 degrees rotation andsafety flap.
Pendant Control:
Ergonomic design for user friendly.Solid and durable, With “Emergency Stop’ button as standard for safety.
| Technical Parameters Double Speed | |||||||||||||||||||
| Type | Capacity (t) |
Lifting Speed (m/min) |
Lifting Motor | Operation Motor | Chain Falls |
Chain Spec |
Test Load (1) |
1-Beam (mm) |
Weight (Kg) |
weight Added With 1meter chain (Kg) |
|||||||||
| Power (kw) |
Rotation Speed (rimin) |
Phases | Voltage (V) |
Frequency (Hz) |
Power (KW) |
Rotation Speed r.min) |
Operation Speed r/min) |
Phases | Voltage (V) |
Frequency (Hz) |
|||||||||
| SY-00501DE | 0.5 | 6923 | 0.80.27 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | 6.3 | 0.625 | 60-190 | 89 | 0.81 |
| SY-01001DE | 1 | 6923 | 1.80.6 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | 7.1 | 1.25 | 60-190 | 116 | 1.1 |
| SY-01002DE | 1 | 35/12 | 0.8/0.27 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | 63 | 1.25 | 60-190 | 101 | 1.62 |
| SY-01501DE | 1.5 | 8929 | 30/10 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | 10.0 | 1.875 | 82-228 | 193 | 23 |
| SY-02001DE | 2 | 68/23 | 3.0/10 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | 10.0 | 25 | 82-228 | 199 | 23 |
| SY-02002DE | 2 | 3.3/1.1 | 1.80.6 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | 7.1 | 25 | 82-228 | 135 | 22 |
| SY-02501DE | 25 | 54/1.8 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | 11.2 | 3.125 | 82-228 | 209 | 28 |
| SY-03001DE | 3 | 5418 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | 11.2 | 3.75 | 82-228 | 220 | 28 |
| SY-03002DE | 3 | 4.5/1.5 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | 10 | 3.75 | 82-228 | 229 | 4.7 |
| SY-03003DE | 3 | 240.8 | 180.6 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-0 | 50/60 | 3 | 47.1 | 3.75 | 82-228 163 | 3.5 | |
| SY-05002DE | 5 | 270.9 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | 11.2 | 6.25 | 100-256 267 | 5.6 | |
| Technical Parameters Single Speed | |||||||||||||||||||
| Type | Capacity (t) |
Lifting Speed (m/min) |
Lifting Motor | Operation Motor | Chain Falls |
Chain Spec |
Test Load (1) |
1-Beam (mm) |
Weight (Kg) |
weight Added With 1meter chain (Kg) |
|||||||||
| Power (kw) |
Rotation Speed (rimin) |
Phases | Voltage (V) |
Frequency (Hz) |
Power (KW) |
Rotation Speed r.min) |
Operation Speed r/min) |
Phases | Voltage (V) |
Frequency (Hz) |
|||||||||
| SY-00301SE | 0.3 | 7.1 | 0.75 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 122 | 3 | 200-460 | 50/60 | 1 | 6.1 | 0.375 | 60-190 | 40 | 0.61 |
| SY-00501SE | 0.5 | 6.8 | 0.75 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | 63 | 0.625 | 60-190 | 89 | 0.81 |
| SY-01001SE | 1 | 6.6 | 1.5 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | 7.1 | 1.25 | 60-190 | 103 | 1.1 |
| SY-01002SE | 1 | 3.4 | 0.75 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | 63 | 1.25 | 60-190 | 101 | 1.62 |
| SY-01501E | 1.5 | 8.8 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | 10.0 | 1,875 | 82-228 | 157 | 23 |
| SY-02001SE | 2 | 6.6 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | 10 | 2.5 | 82-228 | 164 | 23 |
| SY-02002SE | 2 | 3.3 | 1.5 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | 7.1 | 2.5 | 82-228 | 122 | 22 |
| SY-02501SE | 25 | 5.4 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | 11.2 | 3,125 | 82-228 | 177 | 28 |
| SY-03001SE | 3 | 5.4 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | 11.2 | 3.75 | 82-228 | 183 | 28 |
| SY-03002SE | 3 | 4.4 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-0 | 50/60 | 2 | 10.0 | 3.75 | 82-228 | 192 | 4.7 |
| SY-03003SE | 3 | 2.2 | 1.5 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 3 | 7.1 | 3.75 | 82-228 | 146 | 3.5 |
| SY-05002SE | 5 | 27 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | 11.2 | 6.25 | 100-256 | 234 | 5.6 |
