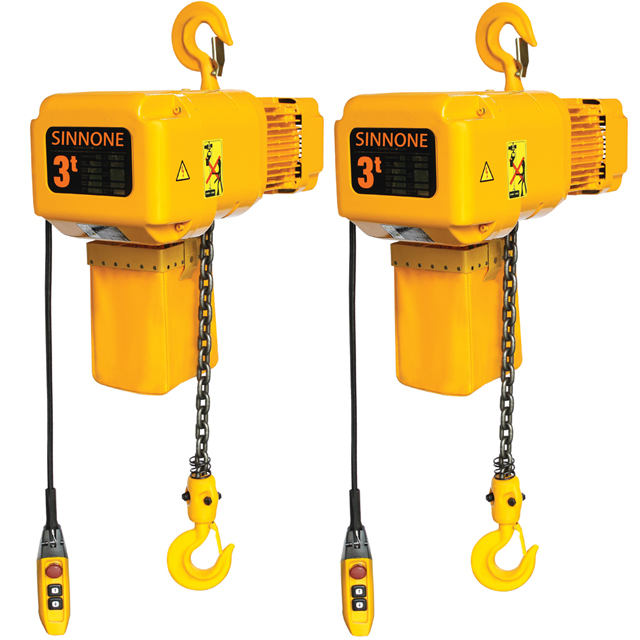

250Kg-10Ton Electromagnetic brake Electric Chain Hoist
Lifting Capacity:250Kg-10Ton
Speed: Single speed/Double speed
Application scenarios: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.
Product Features:
Transformer:
24V/36V/48V/110V transformer device.This device is used to prohibit unexpected accidents caused by electric leckage andguarantee the safe use while raining.
Shell:
It is made of light aliminum alloy shell,light but hard. The cooling fin is especially designed to ensure quick heatdessipation with the rate up to 40% and continuous service.
Side Magnetic Braking Device:
The magnetic force generator is featured forgenerating magnetic force. It allows instant brakeas soon as the electric power is cut off,the braking safety while loading is guaranteed.
Limit Switch:
The limit switch device is installed to make the motor to stop automatically so as to prohibit the chain from exceeding for safety.
Chain:
The chain shall adopt the heat-treatable aluminum alloy chain. It can be safely used in poor environments such as rain,sea water and chemicals.
Hook & Hook Safety Latch:
It is hot forging with perfect strength that is hard to break. The operation safety of the lowerhook is ensured by its 360 degrees rotation andsafety flap.
Pendant Control:
Ergonomic design for user friendly.Solid and durable, With “Emergency Stop’ button as standard for safety.
| SK Series Electric Chain Hoist Technical Parameters | ||||||||||||
| Capacity (t) | Model | Speed Type | Lifting Speed (m/min) | Lifting Motor Power (kW) | Chain Spec. | Chain Falls | Hoist Dimensions | |||||
| H | A | B | D | E | C | |||||||
| 0.25 | SK-0025E01 | S | 9.6 | 0.55 | 5 | 1 | 354 | 475 | 260 | 290 | 190 | 28 |
| D | 9.6/2.4 | |||||||||||
| A | 0.9-10.5 | |||||||||||
| H | 15.8 | 1.1 | 6.3 | 1 | 380 | 510 | 265 | 305 | 200 |
| 0.5 | SK-005E01 | S | 8.6 | 1.1 | 6.3 | 1 | 380 | 510 | 265 | 305 | 200 | 28 |
| D | 8.6/2.1 | |||||||||||
| A | 0.8-9.4 | |||||||||||
| 1 | SK-010E01 | S | 7.3 | 1.5 | 7.1 | 1 | 410 | 620 | 326 | 295 | 175 | 34 |
| D | 7.3/1.8 | |||||||||||
| A | 0.7-8.0 | |||||||||||
| 1.5 | SK-015E01 | S | 9.2 | 3 | 10 | 1 | 615 | 745 | 410 | 370 | 230 | 40 |
| D | 9.272.3 | |||||||||||
| A | 0.9-10.1 | |||||||||||
| 2 | SK-020E01 | S | 7.4 | 3 | 10 | 1 | 615 | 745 | 410 | 420 | 280 | |
| D | 7.4/1.8 | |||||||||||
| A | 0.7-8.1 | |||||||||||
| 2 | SK-020E02 | S | 3.7 | 1.5 | 7.1 | 2 | 610 | 620 | 326 | 295 | 210 | |
| D | 3.7/0.9 | |||||||||||
| A | 0.3-4.0 | |||||||||||
| 2.5 | SK-025E01 | S | 6 | 3 | 11.2 | 1 | 615 | 745 | 410 | 420 | 280 | 48 |
| D | 6/1.5 | |||||||||||
| A | 0.6-6.6 | |||||||||||
| 3 | SK-030E01 | S | 6 | 3 | 11.2 | 1 | 615 | 745 | 410 | 420 | 280 | |
| D | 6/1.5 | |||||||||||
| A | 0.6-6.6 | |||||||||||
| 3 | SK-030E02 | S | 4.6 | 3 | 11.2 | 2 | 820 | 745 | 410 | 425 | 345 | 48 |
| D | 4.6/1.1 | |||||||||||
| A | 0.4-5.0 | |||||||||||
| 3 | SK-030E03 | S | 2.5 | 1.5 | 11.2 | 3 | 725 | 620 | 326 | 345 | 185 | |
| D | 2.5/0.8 | |||||||||||
| A | 0.2-2.7 | |||||||||||
| 5 | SK-050E02 | S | 3 | 3 | 11.2 | 2 | 845 | 745 | 410 | 420 | 345 | |
| D | 3/0.7 | |||||||||||
| A | 0.3-3.3 | |||||||||||
| 7.5 | SK-075E03 | S | 2 | 3 | 11.2 | 3 | 1150 | 745 | 410 | 590 | 395 | 70 |
| D | 2/0.5 | |||||||||||
| A | 0.2-2.2 | |||||||||||
| 10 | SK-100E04 | S | 3 | 3*2 | 11.2 | 4 | 1180 | 800 | 400 | 915 | 458 | |
| D | 3/0.7 | |||||||||||
| A | 03-3.3 |
