Electric Double Girder Gantry Crane

Electric Double Girder Gantry Crane

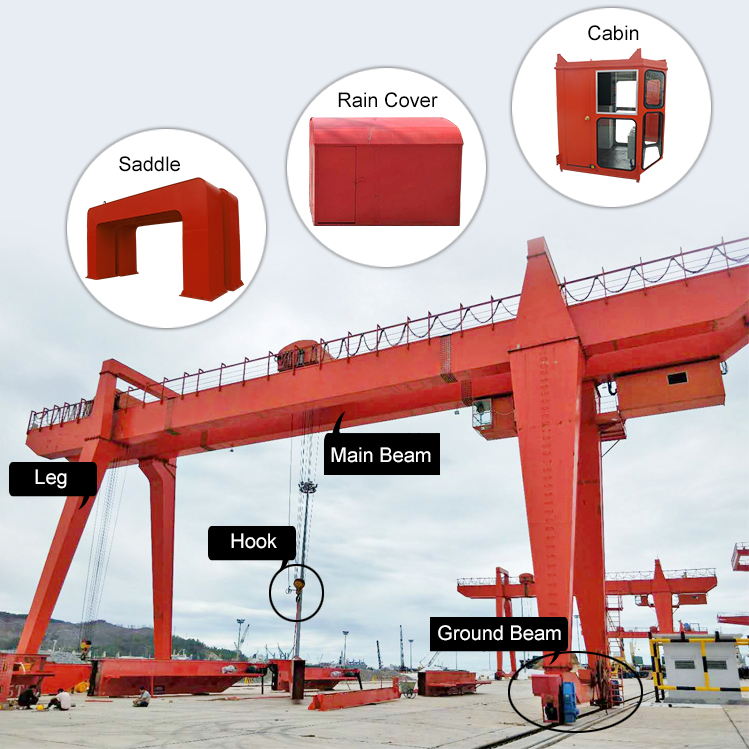

Electric hoist double girder gantry crane (commonly known as: gantry crane, double-girder gantry crane, gantry crane) adopts electric hoist CD1, MD1 and other forms, and the operating mechanism of the travelling structurers adopts three-in-one drive device. The applicable lifting weight is 3-32t, the applicable span is 5-50 meters, and the working environment temperature is in the range of -25-+40℃.

Features
1. The whole machine is light in weight, small in wheel pressure and reliable in performance.
2. The trolley adopts compact structure, hard tooth surface reducer, rolling pulley, welding reel, small size and light weight.
3. It can increase the working range of the hook and improve production efficiency.
4. The mechanism adopts the direct connection type, which reduces the transmission links, reduces the number of failure points, improves the transmission efficiency, and reduces the energy consumption of the crane.
5. The operating mechanism adopts three-in-one deceleration motor, frequency conversion speed regulation, stable starting and braking without impact.
6. 65Mn forged wheels, the wheels are wear-resistant and have a long service life.
7. Optional functions: anti-sway function, vertical lifting function, remote control function, automatic and semi-automatic control function.
It is suitable for general loading, unloading, hoisting work in open cargo yards.
