Electric Wire Rope Winch Gate

Electric Wire Rope Winch Gate　

Most of the winch opening and closing machine is now powered by electric motor, and small and medium-sized capacity specifications can be equipped with hand crank device, convenient for manual opening and closing the gate at any time.

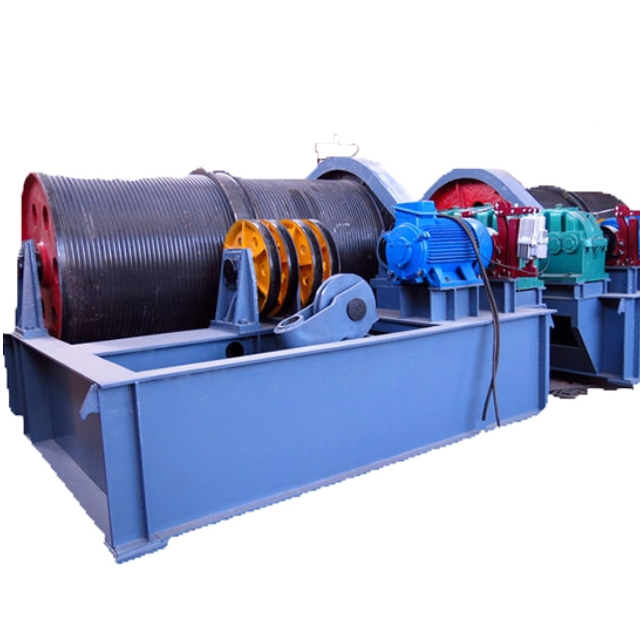

The winch opening and closing machine is composed of motor, coupling, drive shaft, reducer, brake, open gear, reel part, main order controller, frame, pulley and other parts.The wire rope hoisted by the winch passes through the pulley, fixed pulley and balance pulley, and the two ends are fixed to the end (or middle) of the spiral groove on the left and right of the reel respectively by the pressure plate. When working, the power of the motor drives the rotation of the reel through the coupling, reducer and open gear, and the wire rope is put in or put out in the spiral groove to make the gate open and close. The main command controller can control the up and down limited position of the gate, and the brake can make the gate stay in any position required.

The winch type opening and closing machine is a special machinery for water conservancy projects, widely used in the opening and closing of water conservancy project gates, agricultural irrigation, aquaculture, agricultural economic development zones, sewage treatment plants, water conservancy power stations, reservoirs (sluice gates, dams, tunnels, pipelines) and other inlet and outlet gates supporting machinery, mountainous areas, plains with and without electricity can be used. According to the user’s water conservancy project design requirements, can also produce double lifting point winch type opening and closing machine.
