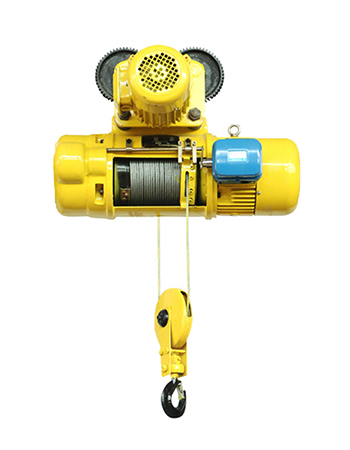

CD1/MD1 Electric Wire Rope Hoist

Brief Introduction

The electric wire rope hoist CD1/MD1 model have features of compact, light, small-sized shape and smooth operation. It can be used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry cranes. The electric hoist model MD1 with double lifting speeds should be used in case where the hoist model CD1 can not meet the requirements for fine adjustments during precision operations.

Main Characteristics

Model CD1, MD1 electric wire rope hoist is a small sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm crane etc..

With slight modification, it can also be used as a winch.

It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

Model CD1 electric hoist has only normal speed, which can satisfy normal application.

Model MD1 electric hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools. etc.

Technical data and main dimension of CD1, MD1 electric wire rope hoist(0.25T-20T)
Model				CD1 MD1
Capacity	T			0.25			0.5			1						2						3
Lifting height	M			3	6	9	6	9	12	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30
Lifting speed	M/min			8			8/0.8			8/0.8						8/0.8						8/0.8
Travel speed	M/min			20(30)			20(30)			20(30)						20(30)						20(30)
Wire rope	Rope dia	mm		3.6			4.8			7.4						11						13
	Wire dia	mm					0.22			0.34						0.5						0.6
	Construction			6×9			D-6×37+1			D-6×37+1						D-6×37+1						D-6×37+1
I-beam track model(GB76-88)				16-22b			16-28b			16-28b						20a-32c						20a-32c
Min. radius of circular track			m	0.8			1.5			1.5		2		3	4	2		2.5		3	4	2		2.5		3	4
Hositing motor	Model			ZD12-4			ZD21-4			ZD21-4						ZD31-4						ZD41-4
	Power	Kw		0.4			0.8 0.2/0.8
	Rotation speed	R/min		1380			1380			1380						1380						1380
	Phase			3			3			3						3						3
	Voltage	V		380			380			380						380						380
	Current	A		1.25			2.4 0.72/2.4			4.3 0.72/4.3						7.6 1.25/7.6						11 2.4/11
	Frequency	Hz		50			50			50						50						50
Travel motor	Model			DW5024			ZDY11-4			ZDY12-4						ZD12-4						ZDY21-4
	Power	Kw		0.06			0.2			0.2						0.4						0.4
	Rotation speed	R/min		1400			1380			1380						1380						1380
	Phase			3			3			3						3						3
	Voltage	V		380			380			380						380						380
	Current	A		0.3			0.72			0.72						1.25						1.25
	Frequency	Hz		50			50			50						50						50
Working system and working group				Middle-level M3			Middle-level M3			Middle-level M3						Middle-level M3						Middle-level M3

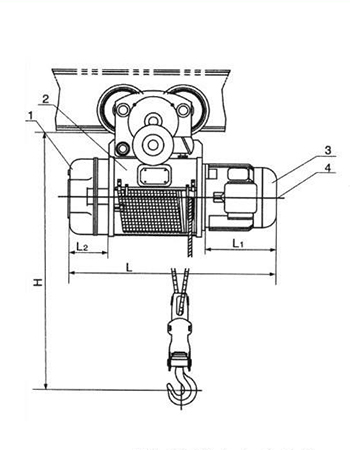

Main dimension	H		mm	432			630		670	685			780			860			960			985			1080
	L2			216			126			159						187						230
	L1			175			228/225			269/266						279						341/343
	L	C		391			616	688	760	758	856	955	1150	1346	1542	820	920	1020	1220	1420	1620	915	1018	1121	1327	1533	1738
		M					638	710	782	780	878	976	1172	1368	1564
	m			104			318	390	462	400	499	597	793	989	1185	418	518	618	818	1018	1218	448	551	654	860	1066	1272
	n			130			190			196						240						264
	h						120			124						155						173
	Φ			16.5			16.5			19						25						25

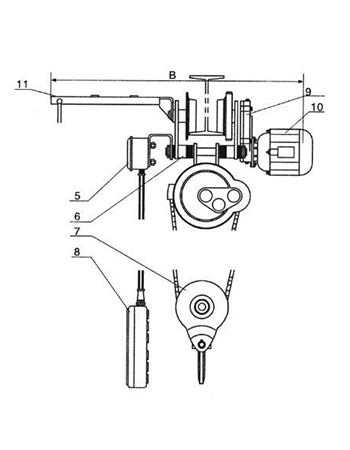

	B			279-315			-884			-884						-930						-930
	E			395			490			584						740						848
	F						355/426			354/492						400/562						438/642
Net weight ±15%	C		kg	44	44.4	44.8	120	125	145	145	158	180	195	208	222	235	248	296	320	340	360	280	300	350	380	405	435
	M						135	140	160	160	170	200	210	220	230	265	278	326	350	370	310	310	330	380	410	435	465
	C fixed			30	30.4	30.8	80	85	90	120	120	125	140	150	165	168	180	190	210	230	250	220	235	250	275	300	325
	M fixed						100	105	110	130	140	145	155	165	180	196	210	220	240	260	280	250	265	280	305	330	355

More type information,please contact with us.
