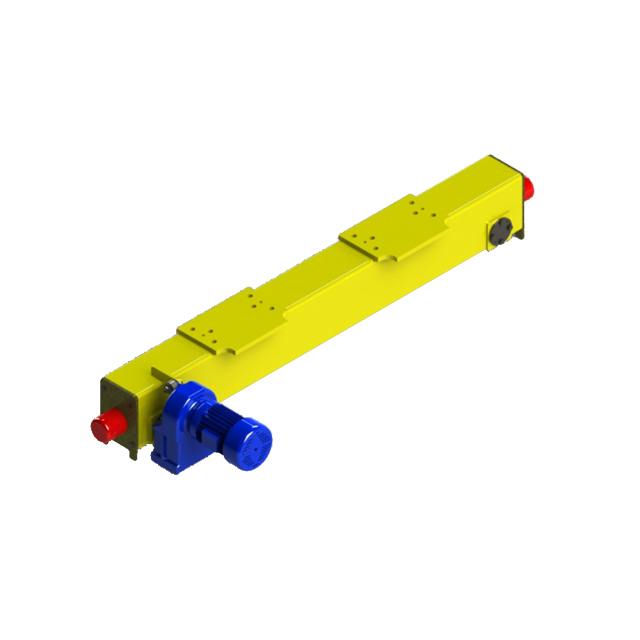

EUD European Style Double Girder Top Running End Carriage
1. END Carriage have compact dimensions, light weight, good stability, triple motor-driven, high mechanical efficiency, installation, use, easy maintenance, low cost, generally as the first choice of customers.
2. END Carriage use rectangular tube modular manufacturing, buffer motor drive, with forged wheels. Use one custom CNC boring and milling machine.Completing opening, boring, milling surface drilling in one time.
3. END Carriage with two main beam webs, rigid connection with the main beam. When calibration crane, placed on the main beam webs, after adjustment good crane span, the main beam can be completed securely connecting plate welding. Main beam can be calibrated separately with end carriage transport, installation, just the main beam webs and end beams are bolted to complete the installation.
4. Every END Carriage run institutions have two wheels mounted at both ends of end carriage. One of only Active Wheel, including gear, used in conjunction with a motor output gear. The other was driven wheels.
Main Feature:
1. Light weight, beautiful appearance, low noise with high efficiency, effectively guaranteed high size accuracy.
2. Simple structure, high space utilization rate and smooth running, it is a good partner of suspension crane manufacturing.
3. Buffer motor drives and use hot-rolled steel channel, with bilateral gear compound idler wheel drive.
4. Compact built-in stopper also adaptive to photoelectric, and greatly improved aesthetics.
5. Forged wheels, geared motor, head board, buffer and other parts all use high quality materials to ensure safety and durability.
6. Whole set end carriage includes wheels, gear motor, connect plat bolts, rubber buffers, etc.
7. High quality and wide adaptation.
8. 1 year warranty.
9. Sample, OEM and ODM orders are all ok.
