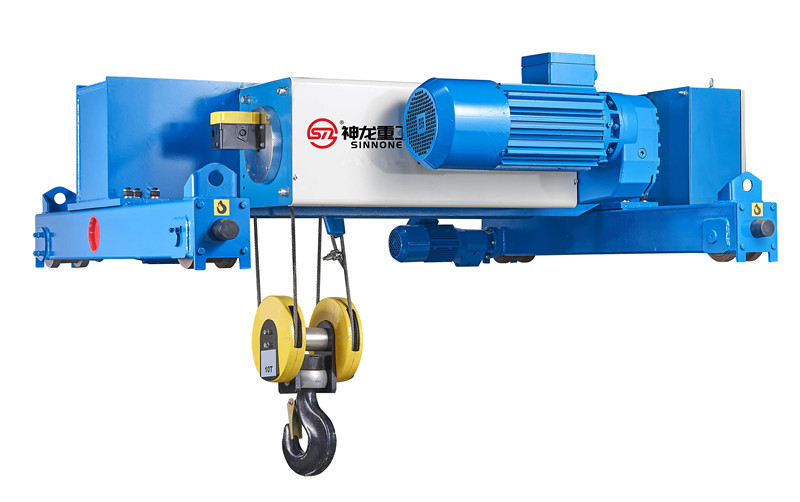

European type double beam electric hoist

European type double beam electric hoist

1. Product characteristics of Europeantype electric wire rope hoist:
1. Compact structure, light weight, small wheel pressure, greater use of space.
The limit size of the product is promoted, and the structure is more compact on the premise of ensuring performance. The MWh wire rope electric hoist in the same plant and working area can cover a larger operating range, increase the utilization rate of the internal area of the plant, and reduce the blind area. If we design according to Muwu’s product series parameters in the plant design stage, we can greatly reduce the requirements of lifting equipment on the height and bearing capacity of the plant, save investment for customers, increase efficiency and reduce cost, and reduce plant investment.
2. High quality components, reliable.
Components are the basis of quality. From the lifting motor to the reducer, from the drum to the steel wire rope, from the reliable electrical components to the refined structural parts, Muwu takes every component seriously, because only the good performance and quality of each component can ensure the performance and quality of the whole machine.
The drive unit ensures smooth operation, and the compact structural design ensures that the offset size of the hook is smaller. It provides the standard configuration of the frequency conversion of the lifting two speed (frequency conversion optional) trolley, which ensures the efficient operation of the crane, the improvement of the logistics efficiency of the workshop, and the timely implementation of the customer’s work plans.
3. Reliable, operation monitoring, easy maintenance.
The product has a variety of monitoring and protection functions to ensure the reliable operation of the crane. Its operation monitoring unit can record in detail the operation of the electric hoist, the operation status and working cycle of the motor, and give warnings in advance. All records can provide data for maintenance, understand the root cause of the problem, and make the maintenance of the crane more timely and faster.
4. Modular design, low maintenance cost and perfect spare parts service.
The concept of modular design has been running through the whole product design, ensuring the standardization and interchangeability of components, and greatly reducing the maintenance cost of products. All product lines of the company have spare parts inventory, and the service team ensures to provide timely services to customers.

What should we pay attention to when using and maintaining European electric hoist?
1. Before normal use, a static load test should be carried out at 125% of the rated load and about 100 mm above the ground for 10 minutes to check whether it is normal.
2. During use, personnel must regularly check the electric hoist, take measures in time if any fault is found, and carefully record it.
3. After continuous operation for a long time, the 10-20 ton hoist may be automatically powered off, which belongs to the overheating protection function of the motor. At this time, it can be lowered. After a period of time, it can continue to work after the motor cools down
4. The dynamic load test is to conduct repeated lifting and moving tests to the left and right with the rated load weight. After the test, check whether the mechanical transmission part, electrical part and connecting part are normal and reliable.
5. Scrapping standard of steel wire rope: the inspection and scrapping standard of steel wire rope shall be in accordance with cb/t5972-1986 “practical code for inspection and scrapping of steel wire rope for crane”.
6. When the electric hoist is not working, it is not allowed to hang heavy objects in the air to prevent parts from deformation.
7. In the process of use, if a fault is found, the main power supply should be cut off immediately.
8. During use, it is forbidden to use it in an impermissible environment and when it exceeds the rated load and the rated closing times per hour (120 times).
9. It is not allowed to press two manual switch buttons at the same time to make the electric hoist move in the opposite direction.
10. Pay special attention to the wearing parts during use.

Chongqing Sinnone Crane Technology manufacture have over 20 years experience, we produce all kind of electric hoist, electric chain hoist, overhead crane, gantry crane. Welcome to visit us and inquire us.
