Explosion proof Electric Chain Hoist

Details

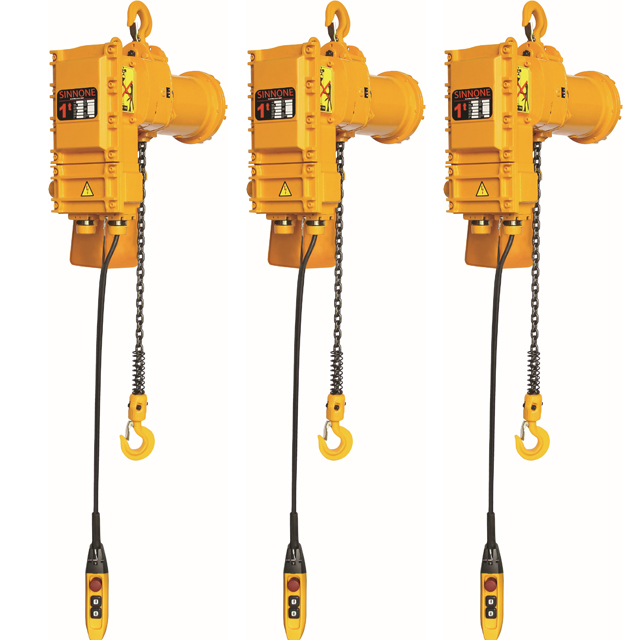

Explosion proof Electric Chain Hoist

BHH explosion proof electric chain hoist Introduction: BHH type explosion proof electric scraping back to the low lifting height of the most ideal alternative to wire rope electric hoist. Generally installed in the overhead I-beam track, or suspended on fixed frames and special spreaders to lift goods and match with equipment, etc. widely used in industrial, mountain warehouses, docks, construction sites, shopping malls, hotels and other industries, especially suitable for Low places and environments with dust, damp and decaying gases. BHH type explosion-proof electric chain hoist is designed with reference to and absorbing the structural advantages of similar products at home and abroad. It not only has many advantages of foreign products, but also has the advantages of convenient maintenance, practical and reliable, low price, etc., so it is more suitable for the actual national conditions of our country.

Explosion proof electric chain hoist advantages:

The explosion proof electric chain hoist adopts an advanced structure in which the three parts of the transmission, the hanger and the motor are assembled axially. This structure is not only convenient for maintenance, but also has a good sealing effect, especially suitable for outdoor and dusty occasions. The power of the explosion-proof hoist is the use of my country’s new type of disc brake motor, which has the advantages of small size, reliable braking, sensitivity, etc., and the strength and wear-resistant steel chain is stable and safe. It is an ideal small lifting tool.

Explosion-proof electric chain hoist use environment:

(1) Below 1000 meters above sea level.

(2) The surrounding air temperature is not higher than +40℃, not less than 20 ℃.

(3) The grid fluctuation is ±10%.

(4) The relative humidity does not exceed 95.9%, which can prevent dripping water.

(5) Zone 1 or Zone 2 of explosive environment in the factory 11 B category, T4 temperature group.

Running explosion proof electric chain hoist parameters:

Model	Capacity (T)	Lifting speed	Lifting motor					Operation Motor					I-beam (mm)
Model	Capacity (T)	Lifting speed	Power	Rotation Speed	Phase	Voltage	Frequency (Hz)	Power	Rotation speed	P	Voltage	Freq. (Hz)	I-beam (mm)
HHBDB 01-01	1	6.8	1.5	1440	3	220-440	50/60	0.4	1440	3	220-440	50/60	80-160
HHBDB 02-01	2	6.8	3	1440	3	220-440	50/60	0.4	1440	3	220-440	50/60	82-178
HHBDB 02-02	2	3.4	1.5	1440	3	220-440	50/60	0.4	1440	3	220-440	50/60	82-178
HHBDB 03-01	3	5.4	3	1440	3	220-440	50/60	0.4	1440	3	220-440	50/60	100-178
HHBDB 03-02	3	3.4	3	1440	3	220-440	50/60	0.4	1440	3	220-440	50/60	100-180
HHBDB 05-02	5	2.7	3	1440	3	220-440	50/60	0.75	1440	3	220-440	50/60	110-180
HHBDB 10-04	10	2.8	3.0*0.2	1440	3	220-440	50/60	0.75*2	1440	3	220-440	50/60	150-220
HHBDB 15-06	15	1.9	3.0*0.2	1440	3	220-440	50/60	0.75*2	1440	3	220-440	50/60	150-220
HHBDB 20-08	20	1.4	3.0*0.2	1440	3	220-440	50/60	0.75*2	1440	3	220-440	50/60	150-220
HHBDB 25-10	25	1.1	3.0*0.2	1440	3	220-440	50/60	0.75*2	1440	3	220-440	50/60	150-220
HHBDB 30-12	30	0.9	3.0*0.2	1440	3	220-440	50/60	0.75*2	1440	3	220-440	50/60	150-220
HHBDB 35-16	35	0.7	3.0*0.2	1440	3	220-440	50/60	0.75*2	1440	3	220-440	50/60	150-220

Hook type explosion proof electric chain hoist

Model	Capacity (T)	Size（mm)
Model	Capacity (T)	H	A	B	D	E	K	L	N	J	R	T	Q	Chain dia (mm)
HHBDB01-01	1	650	600	330	300	176	40	31	24	31	224	298	／	7.1
HHBDB02-01	2	770	725	350	430	265	49	35	30	36	224	298	／	7.1
HHBDB02-02	2	740	600	330	300	230	49	35	30	36	224	298	／	7.1
HHBDB03-01	3	840	725	350	470	265	59	42	35	43	224	298	／	11.2
HHBDB03-02	3	920	725	350	430	320	59	42	35	43	224	298	／	10.0
HHBDB03-03	3	920	600	330	350	280	59	42	35	43	224	298	／	11.2
HHBDB05-02	5	1015	725	350	430	325	60	45	43	54	224	298	／	11.2
HHBDB7.5-03	7.5	1200	725	350	500	380	90	70	50	70	224	298	／	11.2
HHBDB10-04	10	1200	725	350	890	445	90	70	50	54	224	298	430	11.2
HHBDB15-06	15	1360	725	350	1030	／	110	80	85	70	224	298	520	11.2
HHBDB20-08	20	1300	725	350	1220	／	110	80	85	70	224	298	520	11.2
HHBDB25-10	25	1500	725	350	1450	／	140	100	95	75	224	298	680	11.2
HHBDB30-12	30	1640	915	458	1380	／	140	100	95	80	／	／	400	11.2
HHBDB35-16	35	1790	915	458	1600	／	200	140	135	100	／	／	440	11.2

Model	Capacity (T)	Size（mm)
Model	Capacity (T)	H	A	B	D	E	K	L	N	M	J	Q	Chain
HGBD01EP-01	1	600	600	330	300	176	φ40	31	24	–	–	–	φ7.1
HGBD02EP-02	2	750	600	330	300	230	φ49	35	30	–	–	–	φ7.1
HGBD03EP-03	3	920	600	330	350	280	φ59	42	35	–	–	–	φ7.1
HGBD03EP-01	3	845	675	325	430	265	φ59	42	35	–	–	–	φ11.2
HGBD03EP-02	3	950	675	325	430	320	φ59	42	35	–	–	–	φ10.0
HGBD05EP-02	5	1030	675	325	430	325	φ60	45	43	–	–	–	φ11.2
HGBD7.5EP-03	7.5	1200	675	325	500	320	φ90	70	50	–	–	–	φ11.2
HGBD10EP-04	10	1400	725	350	890	445	φ90	70	50	–	–	–	φ11.2
HGBD15EP-06	15	1360	725	350	1030	–	φ110	80	85	88	φ70	520	φ11.2
HGBD20EP-08	20	1250	725	350	1220	–	φ110	80	85	88	φ70	–	φ11.2
HGBD25EP-10	25	1700	725	350	1315	–	φ140	100	95	96	φ80	–	φ11.2
HGBD30EP-12	30	1640	915	458	1380	–	φ140	100	95	228	φ90	–	φ11.2
HGBD35EP-16	35	1790	915	458	1600	–	φ200	140	135	235	φ100	440	φ11.2
