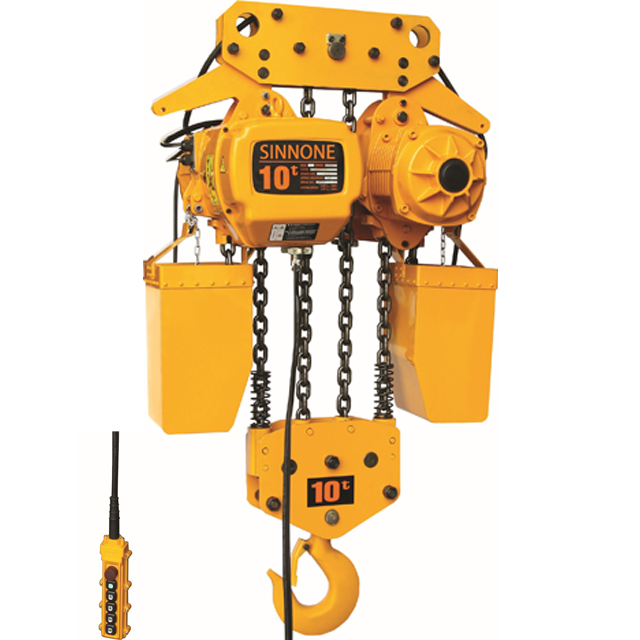

7.5-10Ton Hook Suspension Type Electric Chain Hoist

7.5-10Ton Hook Suspension Type Electric Chain Hoist

Lifting Capacity: 7.5-10T

Speed: Single speed/Double speed

Application scenarios: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.

Product Features:

Transformer:
24V/36V/48V/110V transformer device.This device is used to prohibit unexpected accidents caused by electric leckage andguarantee the safe use while raining.
Shell:
It is made of light aliminum alloy shell,light but hard. The cooling fin is especially designed to ensure quick heatdessipation with the rate up to 40% and continuous service.
Side Magnetic Braking Device:
The magnetic force generator is featured forgenerating magnetic force. It allows instant brakeas soon as the electric power is cut off,the braking safety while loading is guaranteed.
Limit Switch:
The limit switch device is installed to make the motor to stop automatically so as to prohibit the chain from exceeding for safety.
Chain:
The chain shall adopt the heat-treatable aluminum alloy chain. It can be safely used in poor environments such as rain,sea water and chemicals.
Hook & Hook Safety Latch:
It is hot forging with perfect strength that is hard to break. The operation safety of the lowerhook is ensured by its 360 degrees rotation andsafety flap.
Pendant Control:
Ergonomic design for user friendly.Solid and durable, With “Emergency Stop’ button as standard for safety.
