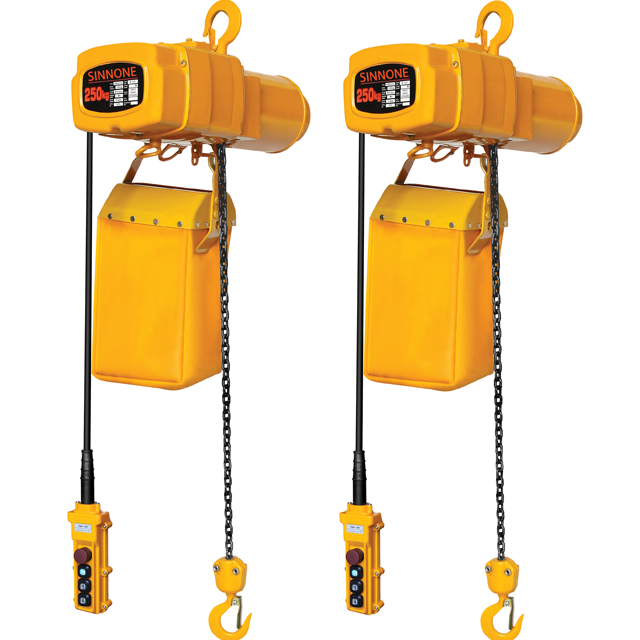

Hook type Electric Chain Hoist
Hook type Electric Chain Hoist
1) Japan Technology
2) Single speed/Dual speed
3) Load limited device is optional
4) Thermal prevention device
5) 1-Phace, 240V, 50Hz/3-Phace, 3...
Hook type Electric Chain Hoist
1) Japan Technology
2) Single speed/Dual speed
3) Load limited device is optional
4) Thermal prevention device
5) 1-Phace, 240V, 50Hz/3-Phace, 380V, 50Hz
3P, 380V, 50Hz(single speed)
| Capacity ton | Lift height m | Lifting speed m/min | No, of Chain | Motor power kw |
Dia of chain mm |
Supply power |
| 0.25t | 3 | 8 | 1 | 0.45 |
5 |
3P, 380V, 50Hz(single speed) |
| 0.5t | 3 | 7 | 1 | 0.8 | 7.1 | 3P, 380V, 50Hz(single speed) |
| 1.0t | 3 | 7 | 1 | 1.6 | 7.1 | 3P, 380V, 50Hz(single speed) |
| 2.0t | 3 | 3.5 | 2 | 1.6 | 7.1 | 3P, 380V, 50Hz(single speed) |
| 2.0t | 3 | 8 | 1 | 3.0 | 9 | 3P, 380V, 50Hz(single speed) |
| 3.0t | 3 | 2.3 | 3 | 1.6 | 7.1 | 3P, 380V, 50Hz(single speed) |
| 3.0t | 3 | 4 | 2 | 3.0 | 9 | 3P, 380V, 50Hz(single speed) |
| 5.0t | 3 | 2.6 | 3 | 3.0 | 9 | 3P, 380V, 50Hz(single speed) |
| 10.0t | 3 | 2.6 | 6 | 3.0*2 | 9 | 3P, 380V, 50Hz(single speed) |
