KEC End Carriage Kit
KEC End Carriage Kit

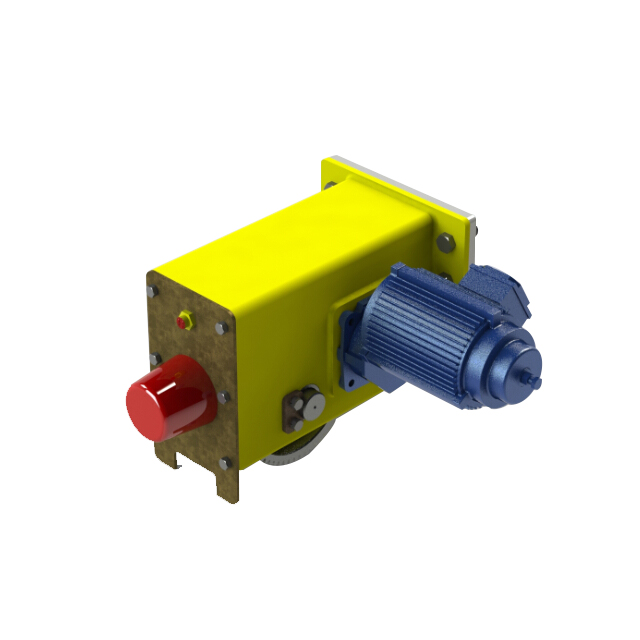

End beam of crane made of rectangular tube, transmission mechanism use buffering motor,equipped with the forged wheel and built-in adaptive optical limiter. S...
KEC End Carriage Kit
End beam of crane made of rectangular tube, transmission mechanism use buffering motor,equipped with the forged wheel and built-in adaptive optical limiter. Small size and ease of long-distance transporting, connected with the middle girder, can be used in single or double girder crane or other no-standard end run institution, with all advantages of complete set of end truck.
|
End carriage model
|
Wheel load(KN)
|
Motor(KW)
|
Wheel size
|
Traveling speed(m/min)
|
A(mm)
|
B(mm)
|
C(mm)
|
E(mm)
|
F(mm)
|
|
KEC125-30
|
50
|
0.3
|
W125*60
|
18-20
|
170
|
230
|
300
|
150
|
150
|
|
KEC160-040
|
100
|
0.4
|
W160*70
|
W125*60
|
220
|
230
|
350
|
200
|
150
|
|
KEC200-075
|
180
|
0.75
|
W200*70
|
W125*60
|
270
|
230
|
350
|
250
|
150
|
|
KEC250-110
|
250
|
1.1
|
W250*80
|
W125*60
|
320
|
280
|
450
|
300
|
200
|
|
KEC315-150
|
350
|
1.5
|
W315*90
|
W125*60
|
420
|
280
|
500
|
400
|
200
|
