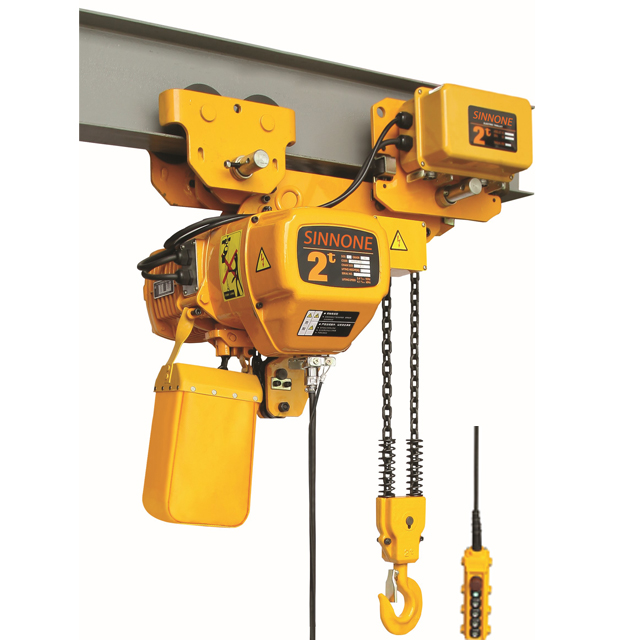

Low headroom Type Electric Chain Hoist
Lifting Capacity: 500KG-10Ton
Speed: Single speed/Double speed
Application scenarios: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.
Product Features:
Low Headroom Electric Chain Hoists are designed for those applications wherespace is limited. The units provide smooth,quiet trouble free operation in a variety of Class IlI applications. The units are equipped with the following features:
FEC G80 ultra heat-treated alloy steel chain which is suitable for rain,sea water andchemical environments.
Choices of lug mounted push/pull,hand geared or motorized trolley drives geared limitswitches for both upper and lower hook travel.
Standard voltage is 200-460 Volt, 3phase.
Capacities from 0. 5 ton through 10 tons
Sturdy steel construction
Direct acting motor brakes
| Size Specification Single Speed | |||||||||||||||
| Type | H | A | B | E | 1 | J | K | L | M | N | P | Q | R | T | |
| SN-00501SL | 440 | 460 | 230 | / | Φ31 | Φ31 | Φ35 | 25 | 52 | 17 | 585 | 400 | 142 | 231 | |
| SN-01001SL | 480 | 520 | 260 | / | / | Φ31 | Φ31 | Φ40 | 31 | 56 | 22 | 630 | 445 | 142 | 231 |
| SN-01501SL | 570 | 615 | 295 | / | / | Φ31 | Φ36 | Φ47 | 38 | 66 | 30 | 720 | 505 | 142 | 231 |
| SN-02001SL | 570 | 615 | 295 | / | / | Φ31 | Φ36 | Φ47 | 38 | 66 | 30 | 720 | 505 | 142 | 231 |
| SN-02002SL | 535 | 520 | 260 | / | / | Φ31 | Φ36 | Φ47 | 38 | 56 | 30 | 665 | 445 | 142 | 231 |
| SN-02501SL | 640 | 615 | 295 | / | / | Φ36 | Φ43 | Φ58 | 47 | 73 | 36 | 775 | 526 | 142 | 231 |
| SN-03001SL | 640 | 615 | 295 | / | / | Φ36 | Φ43 | Φ58 | 47 | 73 | 36 | 775 | 526 | 142 | 231 |
| SN-03002SL | 685 | 615 | 295 | / | / | Φ36 | Φ43 | Φ58 | 47 | 66 | 36 | 750 | 503 | 142 | 231 |
| SN-05002SL | 740 | 615 | 295 | – | / | Φ43 | Φ54 | Φ60 | 48 | 73 | 43 | 825 | 541 | 142 | 231 |
| SN-07503SL | 890 | 615 | 295 | / | / | Φ43 | Φ54 | Φ85 | 80 | 73 | 55 | 1020 | 730 | 142 | 231 |
| SN-10004SL | 880 | 630 | 315 | 1640 | 820 | Φ54 | Φ54 | Φ85 | 80 | 85 | 55 | 926 | 630 | 142 | 231 |
| Size Specification Doble Speed | |||||||||||||||
| Type | H | A | B | D | E | 1 | K | L | M | N | P | Q | R | T | |
| SN-00501DL | 440 | 545 | 260 | / | / | Φ31 | Φ31 | Φ35 | 25 | 52 | 17 | 585 | 400 | 142 | 231 |
| SN-01001DL | 480 | 582 | 280 | / | / | Φ31 | Φ31 | Φ40 | 31 | 56 | 22 | 630 | 445 | 142 | 231 |
| SN-01501DL | 570 | 670 | 313 | / | / | Φ31 | Φ36 | Φ47 | 38 | 66 | 30 | 720 | 505 | 142 | 231 |
| SN-02001DL | 570 | 670 | 313 | / | / | Φ31 | Φ36 | Φ47 | 38 | 66 | 30 | 720 | 505 | 142 | 231 |
| SN-02002DL | 535 | 582 | 280 | / | / | Φ31 | Φ36 | Φ47 | 38 | 56 | 30 | 665 | 445 | 142 | 231 |
| SN-02501DL | 640 | 670 | 313 | / | / | Φ36 | Φ43 | Φ58 | 47 | 73 | 36 | 775 | 526 | 142 | 231 |
| SN-03001DL | 640 | 670 | 313 | / | / | Φ36 | Φ43 | Φ58 | 47 | 73 | 36 | 775 | 526 | 142 | 231 |
| SN-03002DL | 685 | 670 | 313 | / | / | Φ36 | Φ43 | Φ58 | 47 | 66 | 36 | 750 | 503 | 142 | 231 |
| SN-05002DL | 740 | 670 | 313 | / | / | Φ43 | Φ54 | Φ60 | 48 | 73 | 43 | 825 | 541 | 142 | 231 |
| SN-07503DL | 890 | 670 | 313 | / | / | Φ43 | Φ54 | Φ85 | 80 | 73 | 55 | 1020 | 730 | 142 | 231 |
| SN-10004DL | 880 | 670 | 388 | 1640 | 820 | Φ54 | Φ54 | Φ85 | 80 | 85 | 55 | 926 | 630 | 142 | 231 |
| Technical Parameters Single Speed | ||||||||||||||||||
| Type | Capacity (t) |
Lifing Speed (m/min) |
Litting Motor | Operation Motor | Chain Falls |
Chan Spec |
Test Load (t) |
1-Beam (mm) |
weight Added With 1meter chain (Kg) |
|||||||||
| Power (kw) |
Rotation Speed (r/min) |
P | Voltage (V) |
Frequency (Hz) |
Power (kW) |
Rotation Speed (r/min) |
Operation Speed m/min |
P | Voltage (V) |
Frequency (Hz) |
||||||||
| SN-00501SL | 0.5 | 6.8 | 0.75 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ6.3 | 0.625 | 60-190 | 0.81 |
| SN-01001SL | 1 | 6.6 | 1.5 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/0 | 1 | Φ7.1 | 1.25 | 60-190 | 1.1 |
| SN-01501SL | 1.5 | 8.8 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ10.0 | 1.875 | 82-228 | 23 |
| SN-02001SL | 2 | 6.6 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ10.0 | 2.5 | 82-228 | 3 |
| SN-02002SL | 2 | 3.3 | 1.5 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | Φ7.1 | 2.5 | 82-228 | 22 |
| SN-02501SL | 2.5 | 5.4 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ11.2 | 3.125 | 82-228 | 2.8 |
| SN-03001SL | 3 | 5.4 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ11.2 | 3.75 | 82-228 | 28 |
| SN-03002SL | 3 | 4.4 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | Φ10.0 | 3.75 | 82-228 | 4.7 |
| SN-05002SL | 5 | 2.7 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | Φ11.2 | 6.25 | 100-256 | 5.6 |
| SN-07503SL | 7.5 | 1.8 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 3 | Φ11.2 | 9.4 | 100-256 | 8.4 |
| SN-10004SL | 10 | 2.7 | 3.0×2 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 4 | Φ11.2 | 12.5 | 120-294 | 11 |
| Technical Parameters Dual Speed | ||||||||||||||||||
| SN-00501DL | 0.5 | 6.9/2.3 | 0.8/0.3 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ6.3 | 0.625 | 60-190 | 0.81 |
| SN-01001DL | 1 | 6.9/2.3 | 1.8/0.6 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/0 | 1 | Φ7.1 | 1.25 | 60-190 | 1.1 |
| SN-01501DL | 1.5 | 9.0/3.0 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ10.0 | 1.875 | 82-228 | 23 |
| SN-02001DL | 2 | 6.9/2.3 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ10.0 | 25 | 82-228 | 2.3 |
| SN-02002DL | 2 | 3.4/1.1 | 1.8/0.6 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | Φ7.1 | 25 | 82-228 | 22 |
| SN-02501DL | 25 | 5.4/1.8 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ11.2 | 3.125 | 82-228 | 28 |
| SN-03001DL | 3 | 5.4/1.8 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ11.2 | 3.75 | 82-228 | 28 |
| SN-03002DL | 3 | 4.5/1.5 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | Φ10.0 | 3.75 | 82-228 | 4.7 |
| SN-05002DL | 5 | 2.7/0.9 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | Φ11.2 | 6.25 | 100-256 | 5.6 |
| SN-07503DL | 7.5 | 1.8/0.6 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 3 | Φ11.2 | 9.4 | 100-256 | 8.4 |
| SN-10004DL | 10 | 27/0.9 | 3.0×2/1.0×2 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 4 | Φ11.2 | 12.5 | 120-294 | 11 |
