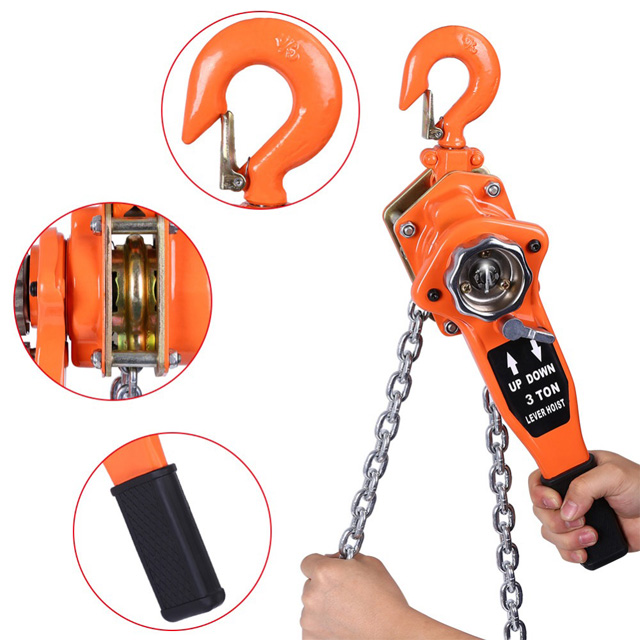

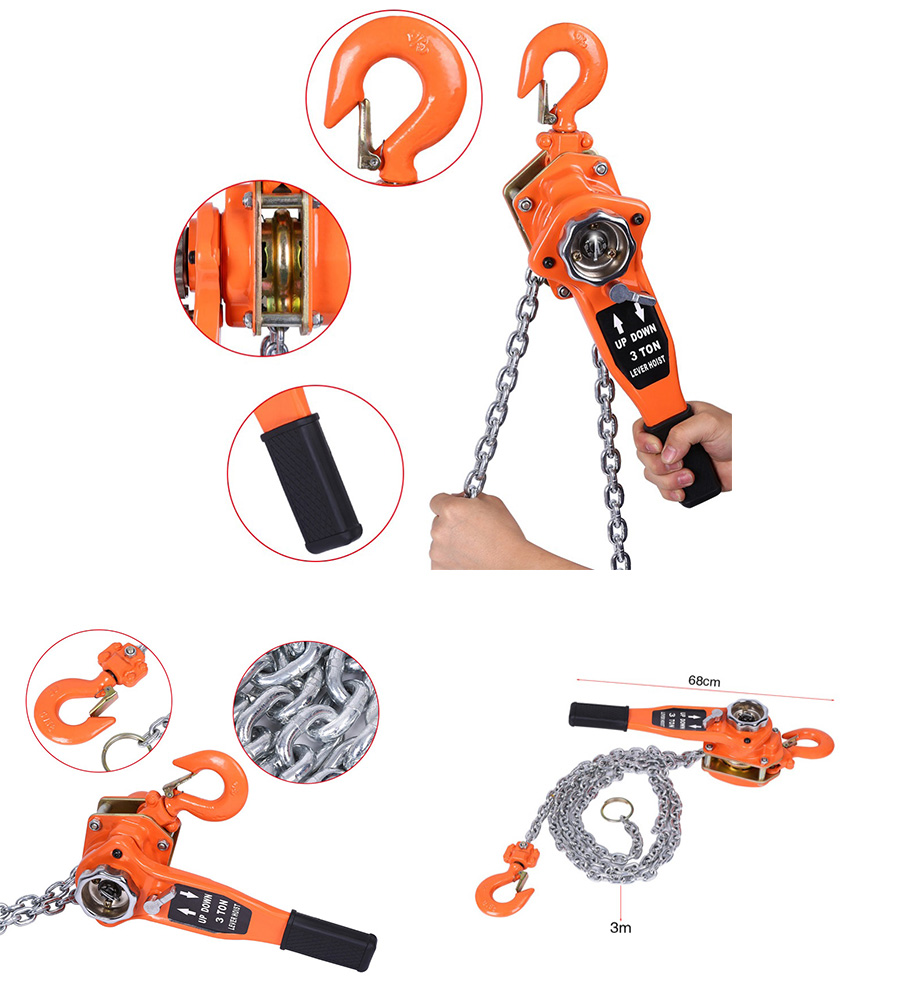

Manual Lever Block
Lever hoist is a kind of portable and versatile hand-operated loading and pulling appliance,which is capable of being in-electricity,mines,shipbuilding,construction-sites,transportation,post for installing equipment,lifting goods,pulling mechanical parts,bulk strapping and fastening,tightening fittings of wires,assembling and welding etc,it has exceptional advantages particularly for pulling in every limited narrow places,in the upper air high above the ground and at any angles.
Features:
1.light weight and robustly constructed.
2.High tensile alloy chain and hooks
3.Minimum headroom required and very versatile in operation
4.360 degree rotating handle of case of use in confined space
5.Power coated finish,very durable against knock and abrasion
6.Automatic weston brake with unique twin pawls is well protected
7.Rubber grip for non-slip handing
8.Roller bearing supported load sheaves for avoiding abrasion
| Capacity | tons | 0.75 | 1.5 | 3.0 | 6.0 | 9.0 |
| Standard lift | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Running test load | KN | 11.2 | 22.5 | 45 | 75 | 112.5 |
| Effort required to lift rate load | N | 140 | 220 | 320 | 340 | 360 |
| Strands of load chain | 1 | 1 | 1 | 2 | 3 | |
| Diameter of load chain | mm | 6 | 8 | 10 | 10 | 10 |
| A | 145 | 175 | 195 | 195 | 195 | |
| B | 86 | 100 | 115 | 115 | 115 | |
| C | 134 | 150 | 190 | 242 | 307 | |
| Dimensions | D | 38 | 48 | 50 | 65 | 81 |
| (mm) | H | 340 | 380 | 490 | 620 | 700 |
| L | 285 | 410 | 410 | 410 | 410 | |
| K | 27 | 36 | 38 | 48 | 54 | |
| Net weight | kg | 9.5 | 11.5 | 18.5 | 27.5 | 46 |
| Packing measurement | cm | 37.5X16X18 | 52X17X22 | 55×18.5X22.5 | 57X21X23 | 60X42X28 |
| Extra weight per metre of Extra lift | kg | 0.8 | 1.4 | 2.2 | 4.4 | 6.6 |
