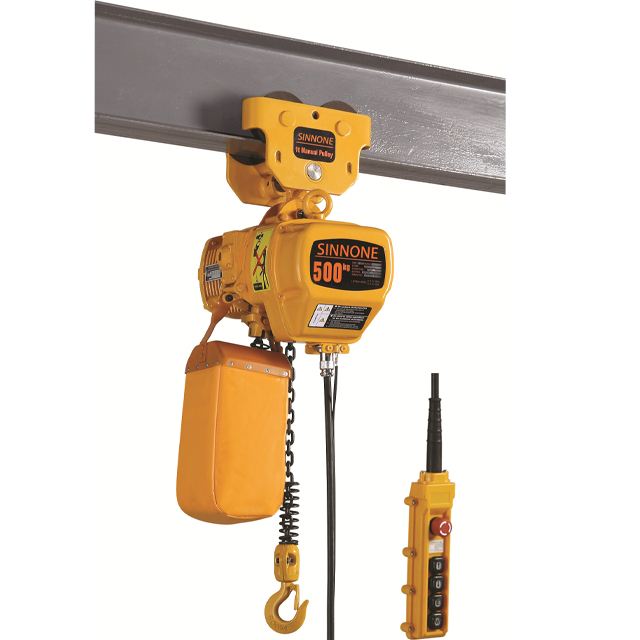

300KG-5Ton Manual Trolley Type Electric Chain Hoist
Lifting Capacity: 300KG-5Ton
Speed: Single speed/Double speed
Application scenarios: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.
Product Features:
Transformer:
24V/36V/48V/110V transformer device.This device is used to prohibit unexpected accidents caused by electric leckage andguarantee the safe use while raining.
Shell:
It is made of light aliminum alloy shell,light but hard. The cooling fin is especially designed to ensure quick heatdessipation with the rate up to 40% and continuous service.
Side Magnetic Braking Device:
The magnetic force generator is featured forgenerating magnetic force. It allows instant brakeas soon as the electric power is cut off,the braking safety while loading is guaranteed.
Limit Switch:
The limit switch device is installed to make the motor to stop automatically so as to prohibit the chain from exceeding for safety.
Chain:
The chain shall adopt the heat-treatable aluminum alloy chain. It can be safely used in poor environments such as rain,sea water and chemicals.
Hook & Hook Safety Latch:
It is hot forging with perfect strength that is hard to break. The operation safety of the lowerhook is ensured by its 360 degrees rotation andsafety flap.
Pendant Control:
Ergonomic design for user friendly.Solid and durable, With “Emergency Stop’ button as standard for safety.
| Size Specification Single Speed | |||||||||||
| Type | H | A | B | D | F | K | L | N | 1 | J | P |
| SNY-00301SM | 580 | 460 | 230 | 280 | 160 | Φ35 | 28 | 17 | Φ28 | 91 | 163 |
| SNY-00501SM | 580 | 460 | 230 | 280 | 160 | Φ35 | 28 | 17 | Φ28 | 91 | 163 |
| SNY-01001SM | 635 | 520 | 260 | 300 | 176 | Φ40 | 31 | 22 | Φ26 | 90 | 164 |
| SNY-01002SM | 670 | 460 | 230 | 280 | 205 | Φ40 | 31 | 22 | Φ26 | 90 | 164 |
| SNY-01501SM | 764 | 615 | 295 | 430 | 265 | Φ47 | 38 | 30 | Φ31 | 115 | 221 |
| SNY-02001SM | 764 | 615 | 295 | 430 | 265 | Φ47 | 38 | 30 | Φ31 | 115 | 221 |
| SNY-02002SM | 800 | 520 | 260 | 300 | 236 | Φ47 | 38 | 30 | Φ31 | 115 | 221 |
| SNY-02501SM | 854 | 615 | 295 | 430 | 265 | Φ58 | 47 | 36 | Φ36 | 138 | 265 |
| SNY-03001SM | 854 | 615 | 295 | 430 | 265 | Φ58 | 47 | 36 | Φ36 | 138 | 265 |
| SNY-03002SM | 960 | 615 | 295 | 430 | 320 | Φ58 | 47 | 36 | Φ36 | 138 | 265 |
| SNY-03003SM | 968 | 520 | 260 | 350 | 205 | Φ58 | 47 | 36 | Φ36 | 138 | 265 |
| SNY-05002SM | 1007 | 615 | 295 | 430 | 325 | Φ60 | 48 | 43 | Φ43 | 157 | 304 |
| Technical Parameters Single Speed | |||||||||||||
| Type | Capacity (t) |
Lifting Speed (m/min) |
Lifting Motor | Chain Falls |
Chain Spec |
Test Load (t) |
l-Beam (mm) |
Weight (Kg) |
weight Added With 1meter chain (Kg) |
||||
| Power (kW) |
Rotation Speed (r/min) |
Phases | Voltage (V) |
Frequency (Hz) |
|||||||||
| SNY-00301SM | 0.3 | 7.1 | 0.75 | 1440 | 3 | 200-460 | 50/60 | 1 | Φ6.1 | 0.375 | 52-100 | 40 | 0.61 |
| SNY-00501SM | 0.5 | 6.8 | 0.75 | 1440 | 3 | 200-460 | 50/60 | 1 | Φ6.3 | 0.625 | 52-100 | 53 | 0.81 |
| SNY-01001SM | 1 | 6.6 | 1.5 | 1440 | 3 | 200-460 | 50/60 | 1 | Φ7.1 | 1.25 | 52-120 | 67 | 1.1 |
| SNY-01002SM | 1 | 3.4 | 0.75 | 1440 | 3 | 200-0 | 50/60 | 2 | Φ6.3 | 1.25 | 52-120 | 67 | 1.1 |
| SNY-01501SM | 1.5 | 8.8 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 1 | Φ10.0 | 1.875 | 60-105 | 118 | 2.3 |
| SNY-02001SM | 2 | 6.6 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 1 | Φ10.0 | 2.5 | 60-105 | 125 | 2.3 |
| SNY-02002SM | 2 | 3.3 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 2 | Φ7.1 | 2.5 | 60-105 | 83 | 2.3 |
| SNY-02501SM | 2.5 | 5.4 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 1 | Φ11.2 | 3.125 | 60-185 | 132 | 2.8 |
| SNY-03001SM | 3 | 5.4 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 1 | Φ11.2 | 3.75 | 60-185 | 138 | 2.8 |
| SNY-03002SM | 3 | 4.4 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 2 | Φ10.0 | 3.75 | 60-185 | 147 | 4.7 |
| SNY-05002SM | 5 | 2.7 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 2 | Φ11.2 | 3.75 | 82-180 | 181 | 5.6 |
