Pneumatic balancer

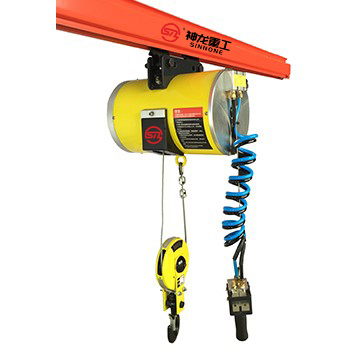

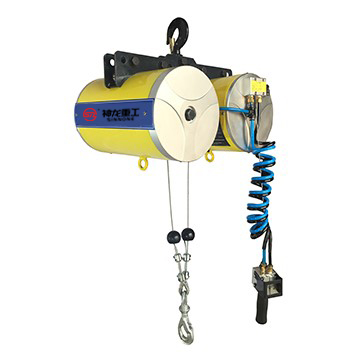

Air Pneumatic balancer (wire rope type)
Pneumatic balancer is a kind of pneumatic power assisted handling equipment. It uses compressed air as the power source and balances the gravity of the object and the pressure in the cylinder through the transmission mechanism to realize the lifting and lowering movement of the weight.
With “floating” function, accurate positioning can be easily achieved
With extremely high working system, it can operate 24 hours without interruption
Using compressed air as power, no spark operation is safer

Our air balancer is the practical application of the principle of pneumatic control technology. Pneumatic drive balanced steady work, when the load changes, the speed is stability. It is used in the occasion which requires smooth transportation. Such as: aircraft, aerospace, automotive, precision machinery and equipment, fragile and explosive production, processing, lifting and other occasions.

1. Rope wheel

Reliable, durable, maintenance-free

2. Bearing

Thrust ball bearings is double dust-proof.

3. Piston and cylinder

The piston and cylinder wall lubrication grease imported from Germany, when

the compressed air into the cylinder to push the piston reciprocates become more compact, lubrication

4. Valve

Precision motion control piston floating out of gas so as to achieve and balance function

5. Control pendant

Push-button control  can accurately and efficiently control lifting and lowering speed

6. Air cut-off  Protection

When the air supply is suddenly cut off, directly controlled by a centrifugal brake power transmission parts will brake automatically lock to prevent any load hanging in the air free fall

7.Brake mechanism

Centrifugal brake system effectively controlled substance due to sudden weight loss or load shedding, causing the rope and hook sudden rise and fall

8. Ball screw

Piston driven rotation of the ball screw reel spool synchronous rotation, drive to enhance the load on the rope reel.
