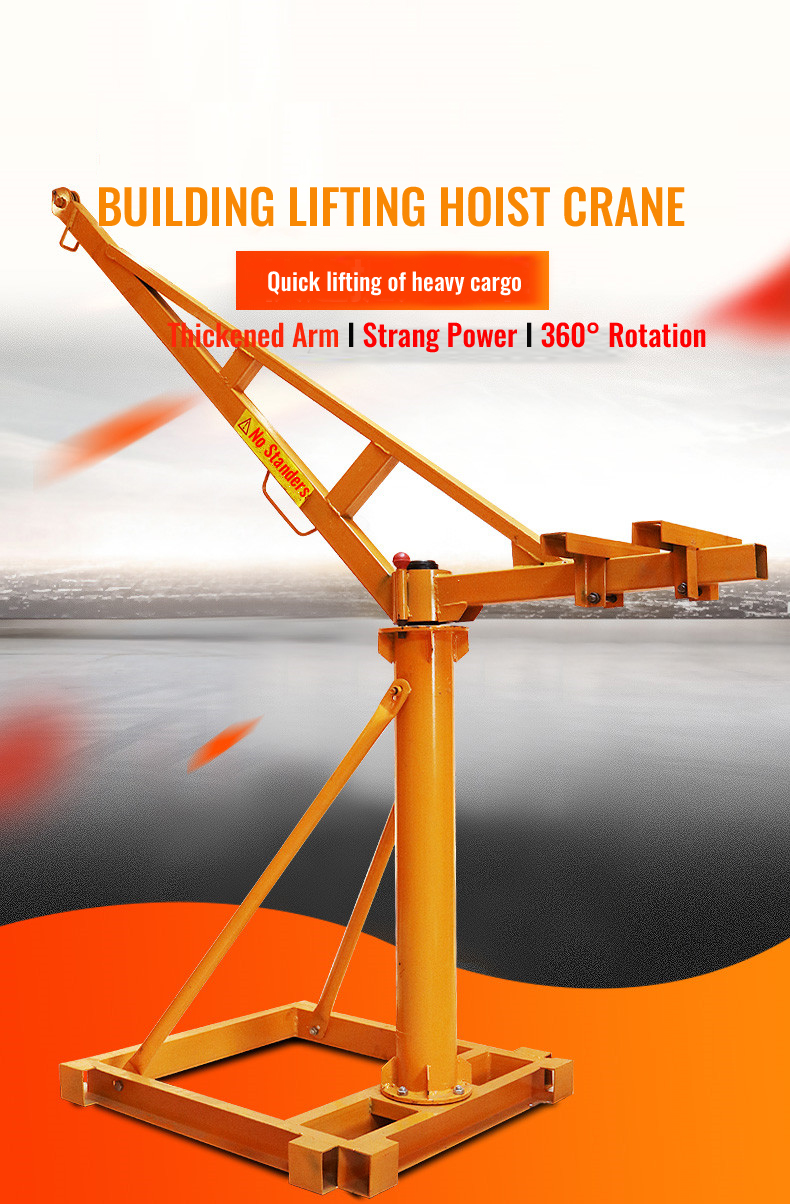

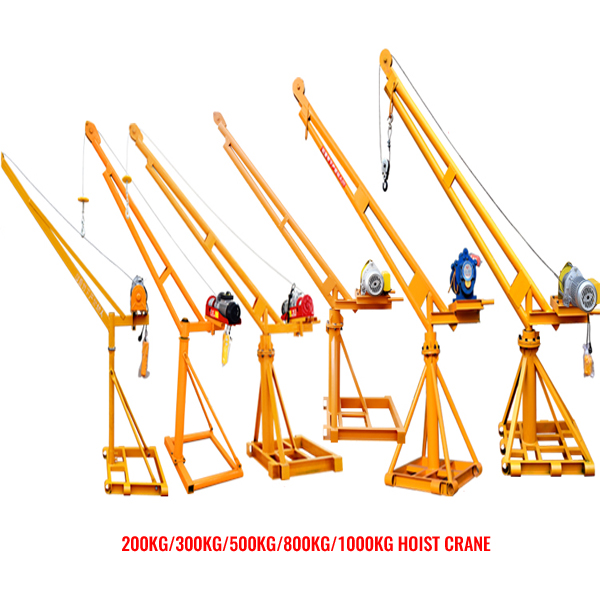

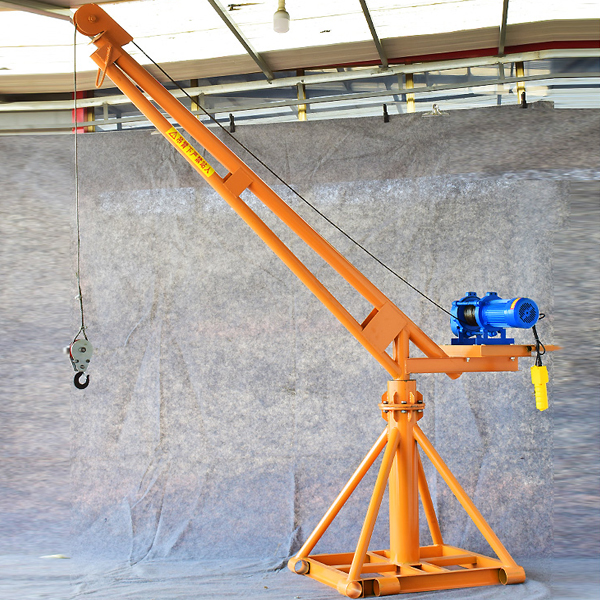

Portable Mini Construction Crane

Portable Mini Construction Crane

Rated voltage (V): 220-380
Rated power (kw): 1.3-1.8-2.2-3.0
Rated frequency (Hz): 50
Maximum lifting height (m): 100M
Diameter of ex factory steel wire rope (mm): 6
Length of ex factory steel wire rope (m): 15-30
Rotating arm length (mm): 1850
Effective length beyond arm depth (mm): 1500
Overall weight (kg): 72-77-83-86
Material: steel pipe support with diameter of 88mm and wall thickness of 4mm
Remarks: suitable for outdoor use. A press weight is required. With brake clutch and air power failure protection. All copper core motor
When the full angle crane lifts the goods for rotation, the lifting height of the heavy objects must be more than 0.3m higher than the obstacles. If the goods touch the obstacles, it will be dangerous.
The operator of the crane shall pay attention that the lifted object shall not exceed the rated lifting capacity of the boom, and the lifted object shall be at the natural hanging position of the hook, so as to ensure safe lifting.
The crane is a money making machine for building decoration and lifting, ending the history of high-rise building decoration materials being handled manually, and a major breakthrough in replacing manual labor with machinery. It adopts 220V power supply, can be operated by two people, has a self weight of 60kg, and has a heavy lifting capacity. It is suitable for lifting and transporting buildings and decorative materials on more than two floors, such as cement, sand, floor tiles, gypsum board, wood, waterproof materials, etc.
