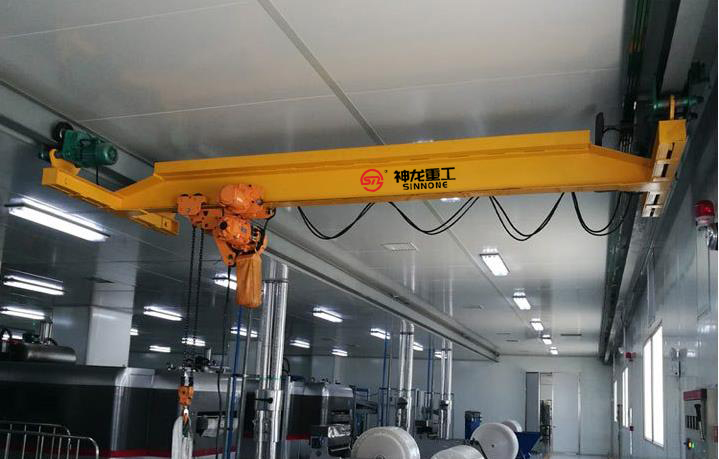

LX Electric Single Girder Suspension Crane

LX Electric Single girder suspension crane

LX electric single girder suspension crane is designed and manufactured in strict accordance with national standards, the lifting capacity is 0.5-10t, the span is 3-16m, the working group is A3-A4, and the working environment temperature is -20-+40℃. It is forbidden to work in flammable, explosive and corrosive media environment. It is used for loading, unloading and moving goods in general workshops and warehouses. The operation forms are ground operation, remote control, and ground operation plus remote control.

Features
1. Configure emergency stop switch, short circuit protection, voltage loss protection, phase sequence protection and other functions;
2. The three mechanisms of hoisting, trolley and cart are independently controlled and can operate independently or at the same time;
3. All connections are made of quick-plug heavy-duty aviation plugs and sockets, which are well sealed and firmly plugged for easy maintenance;
4. The connection part of the plug is protected by plastic sleeve insulation;
5. The trolley limit device can adjust the position according to the actual use;
6. The mobile power supply system adopts the special PVC flat cable for cranes, and the withstand voltage level reaches 450/750V;
7. The trolley mobile power supply system adopts built-in cable pulley, galvanized track and flat cable to supply power together;
8. Overload limiter;
9. Upper and lower limit switches;

Applications
It is mostly used in occasions with small lifting weight and low frequency.
