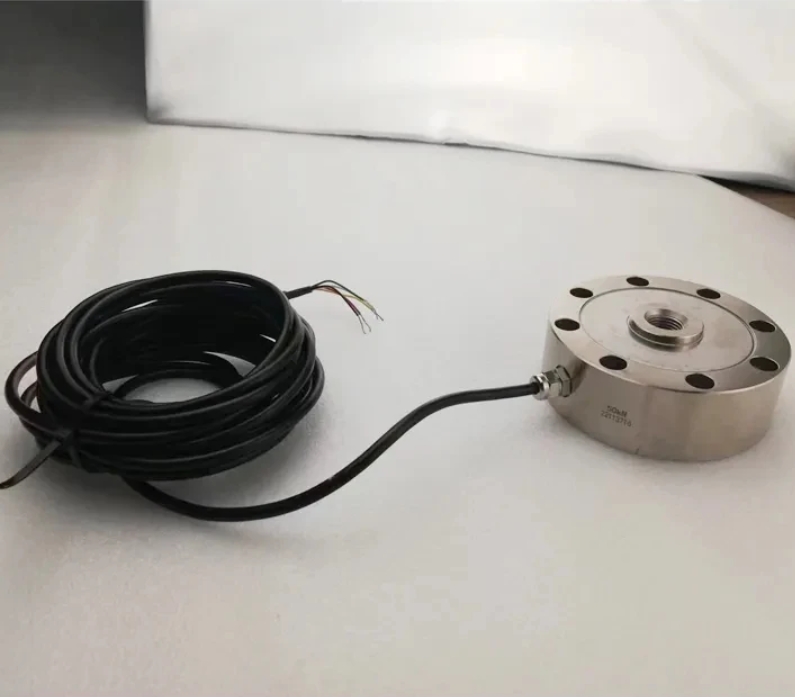

Spoke type force sensor
Parameters
Product Name
Spoke type pressure force load cell (5-70kN)
Accuracy
0.05%FS
Sensitivity
2.0mV/V
...
|
Product Name
|
Spoke type pressure force load cell (5-70kN)
|
|
Accuracy
|
0.05%FS
|
|
Sensitivity
|
2.0mV/V
|
|
Non-linearity
|
0.03%
|
|
Relative creep over 30 min
|
0.05%
|
|
Temp. influence on sensitivity
|
0.05%FS/10℃
|
|
Temp. influence on the zero signal
|
0.05%FS/10℃
|
|
Zero output
|
±1.0%FS
|
|
Input resistance
|
380±10Ω or 750±15Ω
|
|
Output resistance
|
350± 3Ω or 700 ± 5Ω
|
|
Insulation resistance
|
>5000 MΩ
|
|
Operating temperature range
|
-20~+65℃
|
|
Nominal (rated) temperature range
|
-10~+45℃
|
|
Reference temperature
|
23℃
|
|
Reference excitation voltage
|
10V DC
|
|
Limit force
|
150%
|
|
Breaking force
|
>300%
|
|
Material
|
Alloy Steel or Stainless Steel(made in order)
|
|
level of protection
|
IP66（IP67-Stainless Steel）
|
|
Mode of connection
|
Input+ : Red, Input- : Black, Output+ : Green, Output- : White
|
|
Mass
|
2.0kg
|
1. Made of alloy steel or stainless steel
2. Suitable for belt weigher, hopper scale and other weighing devices
3. Good steel performance and high accuracy
