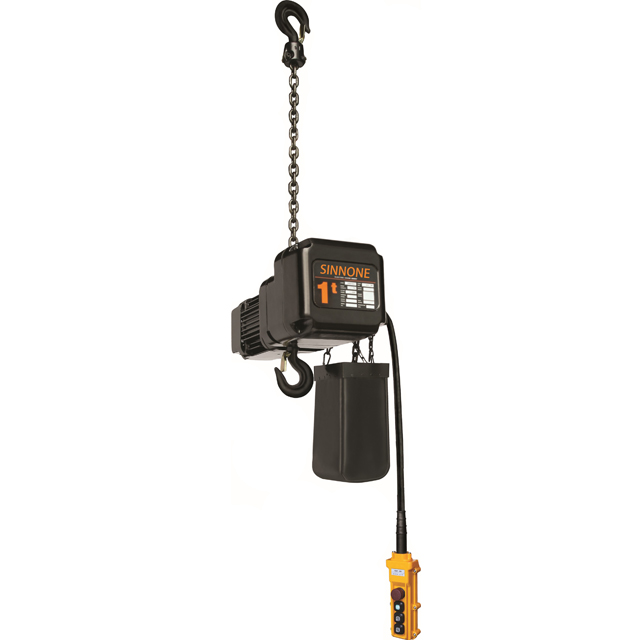

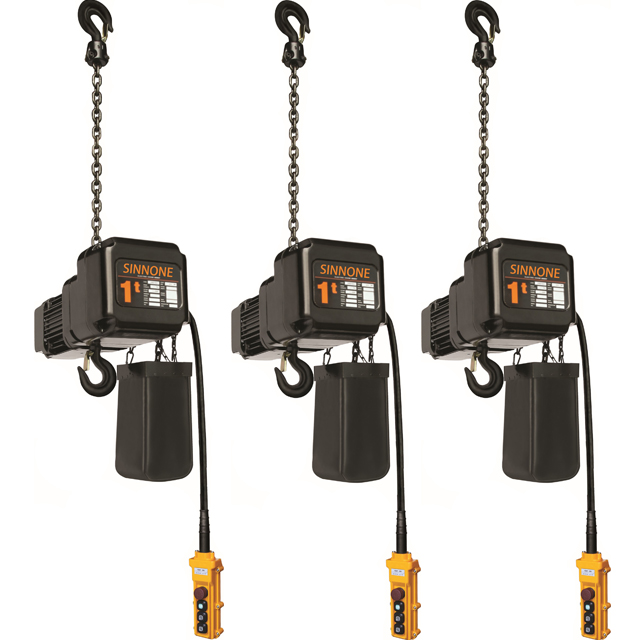

Stage Electric Chain Hoist
Application
It is widely used for stage and theatre locations or the occasional construction sites for the setting of lighting and audio apparatus and loading the objects;
It can easily operated when the hook hitches on the beam of ceiling or on a fixed object;
It can also be used as usual hoist when hung the hoist body on the beam;
Electric magnetic brake device and mechanical brake device work together, dual braking system ensure for more safe and reliable operation.
Single speed/dual speed are avalable, rated capacity from 0.25t to 2t;
Working power: 3-P, 220V-690V, 50HZ, control voltage: 24V.
| Model |
TH-DG-025 |
TH-DG-020 |
TH-DG-100 |
TH-DG-200 |
| Capacity(T) | 0.25 | 0.5 | 1 | 2 |
| Lifting height(m) | 3 | 3 | 3 | 3 |
| Lifting speed(m/min) | 9.2 | 8.3 | 6.3 | 6.9 |
| Motor power(kw) | 0.56 | 0.9 | 1.5 | 3.0 |
| Insulation class | F | F | F | F |
| Chain Dia.(mm) | 4 | 6.3 | 7.1 | 10 |
| No. of chain | 1 | 1 | 1 | 1 |
| Unit weight(kg) | 29/34 | 29/34 | 59/64 | 101/107 |
| Extra weight per meter(kg) | 0.45 | 0.81 | 1.1 | 2.3 |
