Wire rope cable weight crane sensor
Product Name
SNJ-2
Accuracy
0.5%FS
Sensitivity
1.0-1.5mV/V
Relative creep over 30 min
±0.05%FS
Temp. influence on ...
|
Product Name
|
SNJ-2
|
|
Accuracy
|
0.5%FS
|
|
Sensitivity
|
1.0-1.5mV/V
|
|
Relative creep over 30 min
|
±0.05%FS
|
|
Temp. influence on sensitivity
|
±0.05%FS/10℃
|
|
Temp. influence on the zero signal
|
±0.05%FS/10℃
|
|
Zero output
|
±1.0%FS
|
|
Input resistance
|
380±10Ω
|
|
Output resistance
|
350± 3Ω
|
|
Insulation resistance
|
>5000 MΩ
|
|
Operating temperature range
|
-20~+65℃
|
|
Reference temperature
|
23℃
|
|
Bridge voltage
|
advise 10V DC
|
|
Limit force
|
150%FS
|
|
Breaking force
|
>300%
|
|
Material
|
Alloy Steel
|
|
Mode of connection
|
Input+ : Red, Input- : Black, Output+ : Green, Output- : White
|

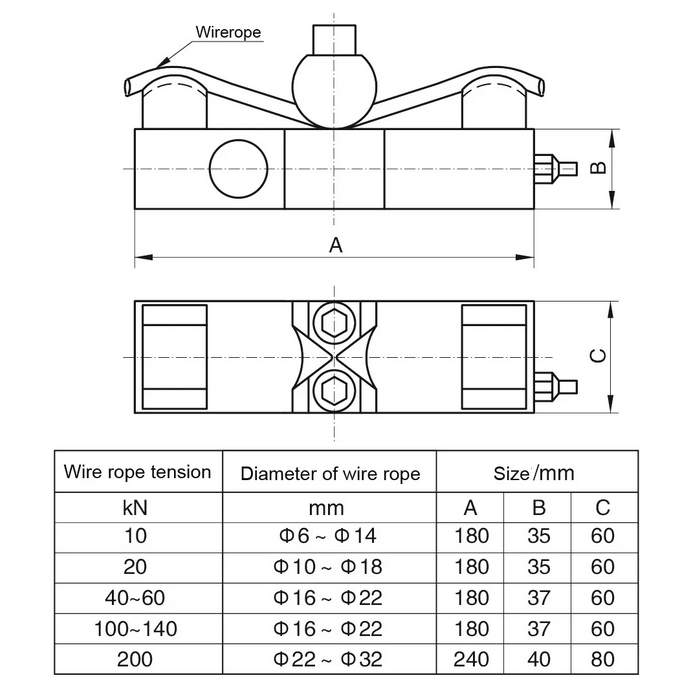

1. Rated Force Range: 10kN,20kN,40-60kN,100-140kN,200kN
2. Cable length: 3-6m
3. OEM: Acceptable
4. Certification: ISO9001/CE
